If using Windows, we recommend using 7-Zip to unzip the exported labels.
Label Coordinates
In the JSON format, label coordinates are normalized to be between 0 and 1. This means that the corners of the frame or image correspond to the coordinates (1,1), (1,0), (0,0), (0,1) regardless of frame dimensions. To get the pixel values of normalized coordinates:- The
xandhcoordinates of a label should be multiplied by the pixel width of the frame or image. - The
yandwcoordinates of a label should be multiplied by the pixel height of the frame or image.
Format of Exported Labels
The
last_edited_by and last_edited_at fields are updated only when the label or its nested attributes are modified in the Label Editor. If the SDK is used to update the label, these fields must be updated manually.Exports of label versions for which the data unit was deleted vary from the examples shown below - the
data_type is deleted, while image groups and image sequences only contain a single data_unit.object_hash for the Ontology object or classification.
Single Images
The export contains a list of JSON objects, with each JSON object representing a single data unit and containing detailed information for all exported labels. The example below describes all the keys for a single exported data unit.| Key | Description | Notes |
|---|---|---|
| label_hash | The Label Row hash | The âhashâ represents a unique identifier |
| created_at | Time and date the label was created | |
| last_edited_at | Time and date the label was last edited | |
| dataset_hash | The Datasetâs hash | The âhashâ represents a unique identifier |
| data_type | The data unitâs file format | Always âvideoâ for videos |
| is_image_sequence | âtrueâ when the data unit is an image sequence | Always ânullâ for images |
| video_link | Contains a private cloud URL for videos | Always ânullâ for images |
| data_units | List of all files the data unit is composed of | Details of the export information for `data_unitsâ can be found below. |
| object_answers | All the attributes in this data unit | The object attributes are identified using their hash |
| classification_answers | All the classifications in a particular data unit | The classification labels are identified using their hash |
| object_actions | The number of states a dynamic attribute can be in. | A change in state occurs each time the attribute answer changes. The objectHash within the object_actions is the attribute answerâs ID. |
| label_status | Indicates whether the data unit has been labeled. | |
| export_history | Contains a record of the export history for this data unit | Exporting labels to confirm export history generates an export history entry. |
| export_hash | The hash for this particular export instance | The âhashâ represents a unique identifier |
| exported_at | The date and time when a particular export instance took place. |
data_units
data_units
The
The example below shows a single object instance.
data_units key contains all files that compose the data unit. For a given image there is only ever a single element in this list. This element contains the following information.data_units here refer to individual files that compose a data unit, as defined in our glossary, and are not to be confused with data units elsewhere in the platform. Encord will update this nomenclature soon, but we always communicate changes to all customers first.| Key | Description | Notes |
|---|---|---|
| data_hash | The fileâs hash | The âhashâ represents a unique identifier |
| data_title | The fileâs title | |
| data_type | The file type | |
| data_sequence | The sequence number of this file within the data unit | Always 0 for images, as single images are composed of a single file by definition |
| labels | A container for the imageâs label information | This contains the label information for the image. |
| data_link | A link to the file stored in your private cloud | |
| width | The width of the image in pixel (px) | |
| height | The height of the image in pixel (px) |
labels
labels
labels contains all object labels, classification labels, and attributes present in the image.| Key | Description | Notes |
|---|---|---|
| objects | A list of label objects in this frame | Contains geometric information for object labels |
| classifications | A list of classifications applying to image as a whole |
objects
objects
objects contains all object label information for the image. A key with the name of the object shape is always present - bounding_box in the example below. All shapes contain coordinates for each vertex.Navigate to the ontology shapes section to see how all ontology classes are represented in the exported file.
| Key | Description | Notes |
|---|---|---|
| objectHash | The specific labelâs hash | The âhashâ represents a unique identifier |
| featureHash | The Ontology objectâs hash | Corresponds to the FeatureNodeHash in the ontology |
| name | The objectâs name | As specified in the ontology |
| value | The name given to the object | |
| color | The color used to draw the object | As specified in the ontology |
| shape | The Ontology class used to create the object | As specified in the ontology |
| confidence | The confidence score for this object | A confidence score of 1 is given for all labels created manually. More info can be found here |
| frame | The frame number of the data unit where the label appears | A frame number of 0 represents the first frame of the data unit. Images always have a frame number of 0. |
| createdBy | The email of the user that created this object | |
| createdAt | Date and time the object was created | |
| lastEditedBy | The email of the user that last edited this object | |
| lastEditedAt | Date and time the object was last edited | |
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
| boundingBox | A list containing the coordinates for the bounding box | Refer to the ontology shapes section for more details |
classifications
classifications
classifications contains all classification information for the image.The following example shows a single object instance.| Key | Description | Notes | |
|---|---|---|---|
| name | The classificationâs name | As specified in the ontology | |
| value | The classification value | Same as the name | |
| createdAt | Time and day the classification was created | ||
| createdBy | The email of the user that created this classification | ||
| confidence | The confidence score for this classification | A confidence score of 1 is given for all labels created manually. More info can be found here | |
| featureHash | The classification instance hash | Corresponds to the FeatureNodeHash in the Ontology | |
| lastEditedAt | Time and date of the last time this classification was edited | ||
| classificationHash | The classification instance hash hash | ||
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
object_answers
object_answers
object_answers is a list of objects that have at least one nested attribute and contains information for all attributes. Expanding object_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| objectHash | The hash of the object containing the attributes | The âhashâ represents a unique identifier |
| classifications | A list of attributes related to the object. Includes Dynamic attributes and Relation attributes | Not to be confused with classifications as defined in our glossary, which apply to a frame |
| name | The attribute name | |
| value | The attribute value | Always the same as the name |
| answers | The value(s) the attribute(s) were set to | If the attribute was a radio button, the answer is the option selected by the annotator |
| featureHash | The attributeâs hash | The âhashâ represents a unique identifier |
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |

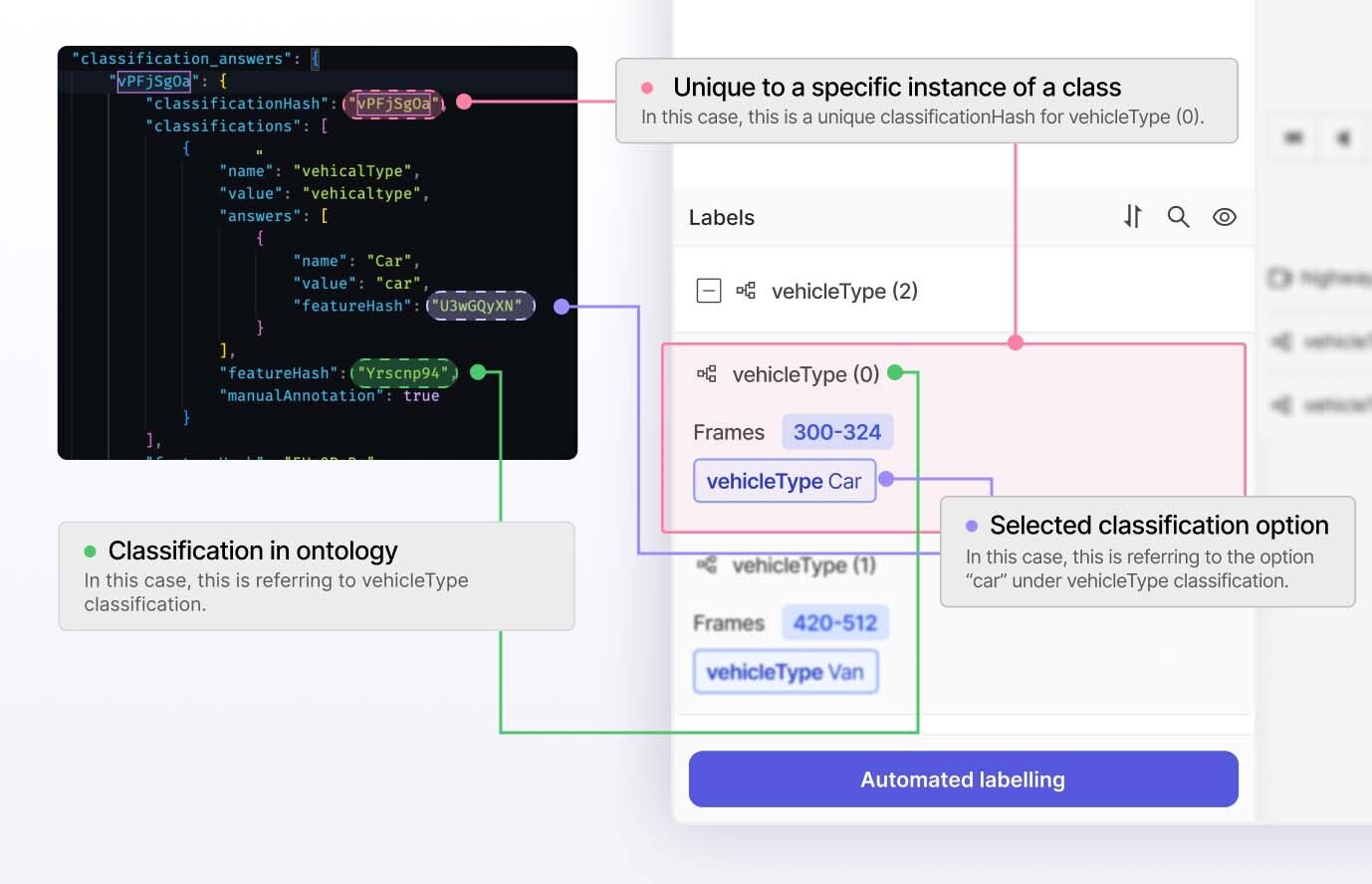

classification_answers
classification_answers
Contains a list of classifications that apply to entire frames or slices.
classification_answer is represented by its hash. Expanding classification_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| classificationHash | The classificationâs hash | Corresponds to the featureNodeHash in the Ontology |
| classifications | A list of classification information | |
| name | The classification name | As set in the Ontology (Quality in the example above) |
| value | The classification value | Always the same as the classification name |
| answers | A list of all classification answers | âanswersâ refer to the values the classification were set to. |
| name | The name of the classification answer | âNightâ in the example above |
| value | The classification answerâs value | Always the same as the classifications answerâs name |
| featureHash | The hash for the particular classification answer | Included in answers |
| featureHash | The hash for the particular classification | |
| manualAnnotation | âtrueâ for all manually created labels. âfalseâ for all labels created with automated labeling techniques |
export_history
export_history
The
export_history contains a list of all exports for this data unit, the first entry being the current export. Each instance contains the following:| Key | Description | Notes |
|---|---|---|
| export_hash | The export instanceâs hash | The âhashâ represents a unique identifier |
| exported_at | Date and time of the export | |
| user_email | The email of the user that made this export |
Image Groups & Image Sequences
Confused about the difference between image groups and image sequences? See our documentation here to learn about different data types in Encord.
| Key | Description | Notes |
|---|---|---|
| label_hash | The Label Row hash | The âhashâ represents a unique identifier |
| created_at | Time and date the label was created | |
| last_edited_at | Time and date the label was last edited | |
| dataset_hash | The datasetâs hash | The âhashâ represents a unique identifier |
| data_type | The data unitâs file format | Always âimg_groupâ for image groups and image sequences |
| is_image_sequence | true when the data unit is an image sequence | false for all other types of data, including image groups. This is what distinguishes image groups and image sequences in your export |
| video_link | Contains a link to file storage location if file is a video | Always ânullâ for image groups and image sequences |
| data_units | List of all files the data unit is composed of | Details of the export information for data units can be found below. |
| object_answers | All the attributes in this data unit | The object attributes are identified using their hash |
| classification_answers | All the classifications in a particular data unit | The classification labels are identified using their hash |
| object_actions | The number of states a dynamic attribute can be in. | A change in state occurs each time the attribute answer changes. The objectHash within the object_actions is the attribute answerâs ID. |
| label_status | Indicates whether the data unit has been labeled. | |
| export_history | Contains a record of the export history for this data unit | Exporting labels to confirm export history generates an export history entry. |
| export_hash | The hash for this particular export instance | The âhashâ represents a unique identifier |
| exported_at | The date and time when a particular export instance took place. |
data_units
data_units
The
data_units key contains a list of all files that compose the image group or image sequence (sometimes referred to as frames). It contains the following information.data_units here refer to individual files that compose a data unit, as defined in our glossary, and are not to be confused with data units elsewhere in the platform. Encord will update this nomenclature soon, but we always communicate changes to all customers first.| Key | Description | Notes |
|---|---|---|
| data_hash | The fileâs hash | The âhashâ represents a unique identifier |
| data_title | The fileâs title | |
| data_type | The file type | |
| data_sequence | The sequence number of this file within the data unit | 0 represents the first file |
| labels | A list of all frames contained in image group or sequence, and any labels on each frame | This contains the label information for each frame. |
| width | The width of the frame in pixel (px) | |
| height | The height of the frame in pixel (px) |
labels
labels
Each number within
The example below shows a single object instance.
labels represents an individual frame within the image group or sequence. Each frame contains the following:| Key | Description | Notes |
|---|---|---|
| objects | A list of label objects in this frame | Contains geometric information for object labels |
| classifications | A list of classifications applying to the entire frame | Is the same value for all instances of this classification. |
objects
objects
objects contains label information for all object instances in a frame. A key with the name of the object shape is always present - bounding_box in the example below. All shapes contain coordinates for each vertex.Navigate to the ontology shapes section to see how all ontology classes are represented in the exported file.
| Key | Description | Notes |
|---|---|---|
| name | The objectâs name | As specified in the ontology |
| color | The color used to draw the object | As specified in the ontology |
| shape | The Ontology class used to create the object | As specified in the ontology |
| value | The name given to the object | |
| createdAt | Date and time the object was created | |
| createdBy | The email of the user that created this object | |
| confidence | The confidence score for this object | A confidence score of 1 is given for all labels created manually. More info can be found here |
| objectHash | The specific labelâs hash | The âhashâ represents a unique identifier |
| featureHash | The Ontology objectâs hash | Corresponds to the FeatureNodeHash in the ontology |
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
| boundingBox | A list containing the coordinates for the bounding box | Refer to the ontology shapes section for more details |
classifications
classifications
classifications contains all frame level classification information for the image group or sequence.The example below shows a single classification instance.| Key | Description | Notes | |
|---|---|---|---|
| name | The classificationâs name | As specified in the ontology | |
| value | The classification value | Same as the name | |
| createdAt | Time and day the classification was created | ||
| createdBy | The email of the user that created this classification | ||
| confidence | The confidence score for this classification | A confidence score of 1 is given for all labels created manually. More info can be found here | |
| featureHash | The classification instance hash | Corresponds to the FeatureNodeHash in the Ontology | |
| lastEditedAt | Time and date of the last time this classification was edited | ||
| classificationHash | The classification instance hash hash | ||
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
object_answers
object_answers
object_answers is a list of objects that have at least one nested attribute and contains information for all attributes. Expanding object_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| objectHash | The hash of the object containing the attributes | The âhashâ represents a unique identifier |
| classifications | A list of attributes related to the object. Includes Dynamic attributes and Relation attributes | Not to be confused with classifications as defined in our glossary, which apply to a frame |
| name | The attribute name | |
| value | The attribute value | Always the same as the name |
| answers | The value(s) the attribute(s) were set to | If the attribute was a radio button, the answer is the option selected by the annotator |
| featureHash | The attributeâs hash | The âhashâ represents a unique identifier |
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
classification_answers
classification_answers
Contains a list of classifications that apply to entire frames or slices.
classification_answer is represented by its hash. Expanding classification_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| classificationHash | The classificationâs hash | The âhashâ represents a unique identifier |
| classifications | A list of classifications information | |
| name | The classification name | As set in the Ontology (Quality in the example above) |
| value | The classification value | Always the same as the classification name |
| answers | A list of all classification answers | âanswersâ refer to the values the classifications were set to. |
| name | The name of the classification answer | âout of focusâ in the example above |
| value | The classification answerâs value | Always the same as the classification answerâs name |
| featureHash | The hash for the particular classification answer | Included in answers |
| featureHash | The hash for the particular classification | |
| manualAnnotation | âtrueâ for all manually created labels. âfalseâ for all labels created with automated labeling techniques |
export_history
export_history
The
export_history contains a list of all exports for this data unit, the first entry being the current export. Each instance contains the following:| Key | Description | Notes |
|---|---|---|
| export_hash | The export instanceâs hash | The âhashâ represents a unique identifier |
| exported_at | Date and time of the export | |
| user_email | The email of the user that made this export |
Videos
The export contains a list of JSON objects, with each JSON object representing a single data unit and containing detailed information for all exported labels. The example below describes all the keys for a single exported data unit.| Key | Description | Notes |
|---|---|---|
| label_hash | The Label Row hash | The âhashâ represents a unique identifier |
| created_at | Time and date the label was created | |
| last_edited_at | Time and date the label was last edited | |
| dataset_hash | The Datasetâs hash | The âhashâ represents a unique identifier |
| data_type | The data unitâs file format | Always âvideoâ for videos |
| is_image_sequence | âtrueâ when the data unit is an image sequence | Always ânullâ for videos |
| video_link | Link to the video saved on your private cloud | Always ânullâ for all other file types |
| data_units | List of all files the data unit is composed of | Details of the export information for `data_unitsâ can be found below. |
| object_answers | All the attributes in this data unit | The object attributes are identified using their hash |
| classification_answers | All the classifications in a particular data unit | The classification labels are identified using their hash |
| object_actions | The number of states a dynamic attribute can be in. | A change in state occurs each time the attribute answer changes. The objectHash within the object_actions is the attribute answerâs ID. |
| label_status | Indicates whether the data unit has been labeled. | |
| export_history | Contains a record of the export history for this data unit | Exporting labels to confirm export history generates an export history entry. |
| export_hash | The hash for this particular export instance | The âhashâ represents a unique identifier |
| exported_at | The date and time when a particular export instance took place. |
data_units
data_units
The
data_units key contains all files that compose the data unit. For a given video there is only a single element in this list. This element contains the following information.data_units here refer to individual files that compose a data unit, as defined in our glossary, and are not to be confused with data unit elsewhere in the platform. Encord will update this nomenclature soon, but we always communicate changes to all customers first.| Key | Description | Notes |
|---|---|---|
| data_hash | The fileâs hash | The âhashâ represents a unique identifier |
| data_title | The fileâs title | |
| data_type | The file type | |
| data_sequence | The sequence number of this file within the data unit | 0 represents the first file |
| labels | A list of all frames contained in the video and any labels on each frame | This contains the label information for each frame. |
| data_fps | The frames per second for this video | |
| data_duration | The video length | In seconds |
| data_link | A link to the file stored in your private cloud | |
| width | The width of the frame in pixel (px) | |
| height | The height of the frame in pixel (px) |
labels
labels
Each number within
The following example shows a single object instance.
labels represents an individual frame within the data unit. Each frame contains the following:| Key | Description | Notes |
|---|---|---|
| objects | A list of label objects in this frame | Contains geometric information for object labels |
| classifications | A list of classifications applying to the entire frame | Is the same value for all instances of this classification. |
objects
objects
objects contains label information for all object instances in a frame. A key with the name of the object shape is always present - bounding_box in the example below. All shapes contain coordinates for each vertex.Navigate to the ontology shapes section to see how all ontology classes are represented in the exported file.
| Key | Description | Notes |
|---|---|---|
| name | The objectâs name | As specified in the ontology |
| color | The color used to draw the object | As specified in the ontology |
| shape | The ontology class used to create the object | As specified in the ontology |
| value | The name given to the object | |
| createdAt | Date and time the object was created | |
| createdBy | The email of the user that created this object | |
| confidence | The confidence score for this object | A confidence score of 1 is given for all labels created manually. More info can be found here |
| objectHash | The specific labelâs hash | The âhashâ represents a unique identifier |
| featureHash | The Ontology objectâs hash | Corresponds to the FeatureNodeHash in the ontology |
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
| boundingBox | A list containing the coordinates for the bounding box | Refer to the ontology shapes section for more details |
classifications
classifications
classifications contains all frame level classification information for the video.The example below shows a single classification instance.| Key | Description | Notes | |
|---|---|---|---|
| name | The classificationâs name | As specified in the ontology | |
| value | The classification value | Same as the name | |
| createdAt | Time and day the classification was created | ||
| createdBy | The email of the user that created this classification | ||
| confidence | The confidence score for this classification | A confidence score of 1 is given for all labels created manually. More info can be found here | |
| featureHash | The classification instance hash | Corresponds to the FeatureNodeHash in the Ontology | |
| lastEditedAt | Time and date of the last time this classification was edited | ||
| classificationHash | The classification instance hash hash | ||
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
object_answers
object_answers
object_answers is a list of objects that have at least one nested attribute and contains information for all attributes. Expanding object_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| objectHash | The hash of the object containing the attributes | The âhashâ represents a unique identifier |
| classifications | A list of attributes related to the object | Not to be confused with classifications as defined in our glossary, which apply to a frame |
| name | The attribute name | |
| value | The attribute value | Always the same as the name |
| answers | The value(s) the attribute(s) were set to | If the attribute was a radio button, the answer is the option selected by the annotator |
| featureHash | The attributeâs hash | The âhashâ represents a unique identifier |
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
classification_answers
classification_answers
Contains a list of classifications that apply to entire frames or slices.
classification_answer is represented by its hash. Expanding classification_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| classificationHash | The classificationâs hash | The âhashâ represents a unique identifier |
| classifications | A list of classifications information | |
| name | The classification name | As set in the ontology (Quality in the example above) |
| value | The classification value | Always the same as the classification name |
| answers | A list of all classification answers | âanswersâ refer to the values the classifications were set to. |
| name | The name of the classification answer | âout of focusâ in the example above |
| value | The classification answerâs value | Always the same as the classification answerâs name |
| featureHash | The hash for the particular classification answer | Included in answers |
| featureHash | The hash for the particular classification | |
| manualAnnotation | âtrueâ for all manually created labels. âfalseâ for all labels created with automated labeling techniques |
export_history
export_history
The
export_history contains a list of all exports for this data unit, the first entry being the current export. Each instance contains the following:| Key | Description | Notes |
|---|---|---|
| export_hash | The export instanceâs hash | The âhashâ represents a unique identifier |
| exported_at | Date and time of the export | |
| user_email | The email of the user that made this export |
DICOM
The export contains a list of JSON objects, with each JSON object representing a single data unit and containing detailed information for all exported labels. The following example describes all the keys for a single exported data unit.| Key | Description | Notes |
|---|---|---|
| label_hash | The Label Row hash | The âhashâ represents a unique identifier |
| created_at | Time and date the label was created | |
| last_edited_at | Time and date the label was last edited | |
| dataset_hash | The datasetâs hash | The âhashâ represents a unique identifier |
| data_type | The data unitâs file format | Always âdicomâ in a DICOM series |
| is_image_sequence | âtrueâ when the data unit is an image sequence | Always ânullâ for a DICOM series |
| video_link | Link to the video or image sequence | Always ânullâ for a DICOM series |
| data_units | List of all files the data unit is composed of | Details of the export information for `data_unitsâ can be found below. |
| object_answers | All the object attributes in this data unit | The object attribute are identified using their hash |
| classification_answers | All the classifications in a particular data unit | The classification labels are identified using their hash |
| object_actions | The number of states a dynamic attribute can be in. | A change in state occurs each time the attribute answer changes. The objectHash within the object_actions is the attribute answerâs ID. |
| label_status | Indicates whether the data unit has been labeled. | |
| export_history | Contains a record of the export history for the data unit | Exporting labels to confirm export history generates an export history entry. |
| export_hash | The hash for this particular export instance | The âhashâ represents a unique identifier |
| exported_at | The date and time when a particular export instance took place. |
data_units
data_units
The
data_units key contains all files that compose the data unit.data_units here refer to individual files that compose a data unit, as defined in our glossary, and are not to be confused with data units elsewhere in the platform. Encord will update this nomenclature soon, but we always communicate changes to all customers first.| Key | Description | Notes |
|---|---|---|
| data_hash | The fileâs hash | The âhashâ represents a unique identifier |
| data_title | The fileâs title | |
| data_type | The file type | |
| data_sequence | The sequence number of this file within the data unit | 0 represents the first file |
| labels | A list of all slices contained in the series and any labels on each slice | This contains the label information for each slice. |
| metadata | The DICOM series metadata. | Contains the ID for the patient, the study, and the series. |
| data_links | Links to all slices within the series, ordered by their sequence number | |
| width | The width of the slice in pixel (px) | |
| height | The height of the slice in pixel (px) |
labels
labels
Each number within
The example below shows a single object instance.
labels represents an individual slice or frame within the data unit. Each slice or frame contains the following:| Key | Description | Notes |
|---|---|---|
| objects | A list of label objects on this slice | Contains geometric information for object labels |
| classifications | A list of classifications applying to the entire slice or frame | Is the same value for all instances of this classification. |
| metadata | Slice specific metadata |
objects
objects
objects contains label information for all object instances in a frame. A key with the name of the object shape is always present - polygon in the example below. All shapes contain coordinates for each vertex.Navigate to the ontology shapes section to see how all ontology classes are represented in the exported file.
| Key | Description | Notes |
|---|---|---|
| name | The objectâs name | As specified in the ontology |
| color | The color used to draw the object | As specified in the ontology |
| shape | The ontology class used to create the object | As specified in the ontology |
| value | The name given to the object | |
| polygon | A list containing the x and y coordinates of each vertex on the polygon | Refer to the ontology shapes section for more details |
| createdAt | Date and time the object was created | |
| createdBy | The email of the user that created this object | |
| confidence | The confidence score for this object | A confidence score of 1 is given for all labels created manually. More info can be found here |
| objectHash | The specific labelâs hash | The âhashâ represents a unique identifier |
| featureHash | The ontology objectâs hash | Corresponds to the FeatureNodeHash in the ontology |
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
classifications
classifications
classifications contains all frame level classification information for the slice.The example below shows a single classification instance.| Key | Description | Notes | |
|---|---|---|---|
| name | The classificationâs name | As specified in the ontology | |
| value | The classification value | Same as the name | |
| createdAt | Time and day the classification was created | ||
| createdBy | The email of the user that created this classification | ||
| confidence | The confidence score for this classification | A confidence score of 1 is given for all labels created manually. More info can be found here | |
| featureHash | The classification instance hash | Corresponds to the FeatureNodeHash in the ontology | |
| lastEditedAt | Time and date of the last time this classification was edited | ||
| classificationHash | The classification instance hash hash | ||
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
metadata
metadata
| Key | Description | Notes |
|---|---|---|
| dicom_instance_uid | The DICOM instance UID | DICOM tag value (0008,0018). More information can be found here |
| multiframe_frame_number | A field indicating the frame number when the JSON contains only a single label | Displays null when each slice has its only expandable labels instance |
| file_uri | This sliceâs URI | Identifies this slice |
| height | The sliceâs height (in pixel) | DICOM tag value (0028,0010). More information can be found here |
| width | The sliceâs width (in pixel) | DICOM tag value (0028,0011). More information can be found here |
metadata
metadata
The slice metadata contains information on the DICOM study, the DICOM series, as well as the patient.
| Key | Description | Notes |
|---|---|---|
| patient_id | The patient ID | DICOM tag value (0010,0020). More information can be found here |
| study_uid | The DICOM studyâs ID | DICOM tag value (0020,000D). More information can be found here |
| series_uid | The DICOM seriesâ ID | DICOM tag value (0020,000E). More information can be found here |
object_answers
object_answers
object_answers is a list of objects that have at least one nested attribute and contains information for all attributes. Expanding object_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| objectHash | The hash of the object containing the attributes | The âhashâ represents a unique identifier |
| classifications | A list of attributes related to the object. Includes Dynamic attributes and Relation attributes. | Not to be confused with classifications as defined in our glossary, which apply to a frame |
| name | The attribute name | |
| value | The attribute value | Always the same as the name |
| answers | The value(s) the attribute(s) were set to | If the attribute was a radio button, the answer is the option selected by the annotator |
| featureHash | The attributeâs hash | The âhashâ represents a unique identifier |
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
classification_answers
classification_answers
classification_answers a list of frame classifications in which each classification is represented by its hash. Expanding classification_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| classificationHash | The classificationâs hash | The âhashâ represents a unique identifier |
| classifications | A list of information about the classification | |
| name | The classification name | As set in the ontology (Quality in the example above) |
| value | The classification value | Always the same as the classification name |
| answers | A list of all classification answers | âanswersâ refer to the values the classification were set to. |
| name | The name of the classification answer | âout of focusâ in the example above |
| value | The classification answerâs value | Always the same as the classification answerâs name |
| featureHash | The hash for the particular classification answer | Included in answers |
| featureHash | The hash for the particular classification | |
| manualAnnotation | true for all manually created labels. false for all labels created with automated labeling techniques |
export_history
export_history
The
export_history contains a list of all exports for this data unit, the first entry being the current export. Each instance contains the following:| Key | Description | Notes |
|---|---|---|
| export_hash | The export instanceâs hash | The âhashâ represents a unique identifier |
| exported_at | Date and time of the export | |
| user_email | The email of the user that made this export |
Audio
The export contains a list of JSON objects, with each JSON object representing a single data unit and containing detailed information for all exported labels. The example below describes all the keys for a single exported data unit.| Key | Description | Notes |
|---|---|---|
| label_hash | The Label Row hash | The âhashâ represents a unique identifier |
| created_at | Time and date the label was created | |
| last_edited_at | Time and date the label was last edited | |
| dataset_hash | The Datasetâs hash | The âhashâ represents a unique identifier |
| data_type | The data unitâs file format | Always âvideoâ for videos |
| is_image_sequence | âtrueâ when the data unit is an image sequence | Always ânullâ for images |
| video_link | Contains a private cloud URL for videos | Always ânullâ for images |
| data_units | List of all files the data unit is composed of | Details of the export information for `data_unitsâ can be found below. |
| object_answers | All the attributes in this data unit | The object attributes are identified using their hash |
| classification_answers | All the classifications in a particular data unit | The classification labels are identified using their hash |
| object_actions | The number of states a dynamic attribute can be in. | A change in state occurs each time the attribute answer changes. The objectHash within the object_actions is the attribute answerâs ID. |
| label_status | Indicates whether the data unit has been labeled. | |
| export_history | Contains a record of the export history for this data unit | Exporting labels to confirm export history generates an export history entry. |
| export_hash | The hash for this particular export instance | The âhashâ represents a unique identifier |
| exported_at | The date and time when a particular export instance took place. |
classification_answers
classification_answers
classification_answers a list of frame classifications in which each classification is represented by its hash. Expanding classification_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| classificationHash | The classificationâs hash | The âhashâ represents a unique identifier |
| classifications | A list of information about the classification | |
| name | The classification name | As set in the ontology (Quality in the example above) |
| value | The classification value | Always the same as the classification name |
| answers | A list of all classification answers | âanswersâ refer to the values the classification were set to. |
| name | The name of the classification answer | âout of focusâ in the example above |
| value | The classification answerâs value | Always the same as the classification answerâs name |
| featureHash | The hash for the particular classification answer | Included in answers |
| featureHash | The hash for the particular classification | |
| manualAnnotation | true for all manually created labels. false for all labels created with automated labeling techniques | |
| range | The time span on which the classification label is applied | Measured in milliseconds (ms) |
data_units
data_units
The
data_units key contains all files that compose the data unit. For a given image there is only ever a single element in this list. This element contains the following information.data_units here refer to individual files that compose a data unit, as defined in our glossary, and are not to be confused with data units elsewhere in the platform. Encord will update this nomenclature soon, but we always communicate changes to all customers first.| Key | Description | Notes |
|---|---|---|
| data_hash | The fileâs hash | The âhashâ represents a unique identifier |
| data_title | The fileâs title | |
| data_type | The file type | |
| data_sequence | The sequence number of this file within the data unit | Always 0 for images, as single images are composed of a single file by definition |
| labels | A container for the imageâs label information | This contains the label information for the image. |
| data_link | A link to the file stored in your private cloud | |
| width | The width of the image in pixel (px) | |
| height | The height of the image in pixel (px) |
object_answers
object_answers
object_answers contains all the object labels that have at least one nested attribute and contains information for all attributes. Expanding object_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| objectHash | The hash of the object containing the attributes | The âhashâ represents a unique identifier |
| classifications | A list of attributes related to the object. | Not to be confused with classifications as defined in our glossary, which apply to a frame |
| name | The attribute name | |
| value | The attribute value | Always the same as the name |
| answers | The value(s) the attribute(s) were set to | If the attribute was a radio button, the answer is the option selected by the annotator |
| featureHash | The attributeâs hash | The âhashâ represents a unique identifier |
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
| range | The time span on which the object label is applied | Measured in milliseconds (ms) |
Text
The export contains a list of JSON objects, with each JSON object representing a single data unit and containing detailed information for all exported labels. The example below describes all the keys for a single exported data unit.| Key | Description | Notes |
|---|---|---|
| label_hash | The Label Row hash | The âhashâ represents a unique identifier |
| created_at | Time and date the label was created | |
| last_edited_at | Time and date the label was last edited | |
| dataset_hash | The Datasetâs hash | The âhashâ represents a unique identifier |
| data_type | The data unitâs file format | Always âvideoâ for videos |
| is_image_sequence | âtrueâ when the data unit is an image sequence | Always ânullâ for images |
| video_link | Contains a private cloud URL for videos | Always ânullâ for images |
| data_units | List of all files the data unit is composed of | Details of the export information for `data_unitsâ can be found below. |
| object_answers | All the attributes in this data unit | The object attributes are identified using their hash |
| classification_answers | All the classifications in a particular data unit | The classification labels are identified using their hash |
| object_actions | The number of states a dynamic attribute can be in. | A change in state occurs each time the attribute answer changes. The objectHash within the object_actions is the attribute answerâs ID. |
| label_status | Indicates whether the data unit has been labeled. | |
| export_history | Contains a record of the export history for this data unit | Exporting labels to confirm export history generates an export history entry. |
| export_hash | The hash for this particular export instance | The âhashâ represents a unique identifier |
| exported_at | The date and time when a particular export instance took place. |
classification_answers
classification_answers
classification_answers a list of frame classifications in which each classification is represented by its hash. Expanding classification_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| classificationHash | The classificationâs hash | The âhashâ represents a unique identifier |
| classifications | A list of information about the classification | |
| name | The classification name | As set in the ontology (Quality in the example above) |
| value | The classification value | Always the same as the classification name |
| answers | A list of all classification answers | âanswersâ refer to the values the classification were set to. |
| name | The name of the classification answer | âout of focusâ in the example above |
| value | The classification answerâs value | Always the same as the classification answerâs name |
| featureHash | The hash for the particular classification answer | Included in answers |
| featureHash | The hash for the particular classification | |
| manualAnnotation | true for all manually created labels. false for all labels created with automated labeling techniques | |
| range | The frame range on which the classification label is applied |
data_units
data_units
The
data_units key contains all files that compose the data unit. For a given image there is only ever a single element in this list. This element contains the following information.data_units here refer to individual files that compose a data unit, as defined in our glossary, and are not to be confused with data units elsewhere in the platform. Encord will update this nomenclature soon, but we always communicate changes to all customers first.| Key | Description | Notes |
|---|---|---|
| data_hash | The fileâs hash | The âhashâ represents a unique identifier |
| data_title | The fileâs title | |
| data_type | The file type | |
| data_sequence | The sequence number of this file within the data unit | Always 0 for images, as single images are composed of a single file by definition |
| labels | A container for the imageâs label information | This contains the label information for the image. |
| data_link | A link to the file stored in your private cloud | |
| width | The width of the image in pixel (px) | |
| height | The height of the image in pixel (px) |
object_answers
object_answers
object_answers contains all the object labels that have at least one nested attribute and contains information for all attributes. Expanding object_answers reveals the following:| Key | Description | Notes |
|---|---|---|
| objectHash | The hash of the object containing the attributes | The âhashâ represents a unique identifier |
| classifications | A list of attributes related to the object. | Not to be confused with classifications as defined in our glossary, which apply to a frame |
| name | The attribute name | |
| value | The attribute value | Always the same as the name |
| answers | The value(s) the attribute(s) were set to | If the attribute was a radio button, the answer is the option selected by the annotator |
| featureHash | The attributeâs hash | The âhashâ represents a unique identifier |
| manualAnnotation | A field indicating whether the object was drawn manually or not | true means it was drawn manually, while false means it was created using a model or an automated labeling technique |
| range | The frame range on which the object label is applied | |
| range_html | Provides detailed information about the specific section of the text file being labeled | |
| start | Start point of the label | |
| end | End point of the label | |
| offset | An integer that specifies the character position within the identified node | For example { "offset": 125 } means the label starts / ends at the 125th character in the node |
Ontology Shapes
Exports contain the Ontology shape coordinates used to create the label.Bounding Box
Bounding Box
x and y represent coordinates of the top-left corner of the box. h and w respectively represent the height and width of the box.Polygon
Polygon
This is a legacy field used by existing customers. We recommend new customers use the
polygons field below.polygon list contains the x and y coordinates for all vertices in a simple polygon. For complex polygons, see the polygons field below.Polygons
Polygons
Polygons can have complex shapes, including being enclosed in one another, and encompassing separate regions. In each case the polygonâs coordinates are arranged in a different way.







Polyline
Polyline
Polylines contain the
x and y coordinates for each vertex. Keypoint
Keypoint
Keypoints are represented in the export using only
x and y coordinates. Rotatable Bounding Box
Rotatable Bounding Box
x and y represent the coordinates of the top-left corner of the unrotated box. h and w respectively represent the height and width of the box, while theta represents the angle of clockwise rotation of the bounding box about the center of the box. Bitmask
Bitmask
The
rleString encodes the Bitmask label, and has to be decoded. See our SDK documentation to learn how to decode an rleString. Object primitive
Object primitive
Object primitives are referred to as
skeletons in the export. Each point on the object primitive is represented in the export using x and y coordinates.Below is an example of an object primitive with 3 points.| Key | Description | Notes |
|---|---|---|
| name | Name of this point | As set in the Ontology |
| color | The hexadecimal color code used to represent this point | As set in the Ontology |
| featureHash | The hash for this particular point | the âhashâ is a unique identifier |
| occluded | This point is marked as occluded | if the point was left on the default setting (visible) this key is omitted |
| invisible | This point is marked as invisible | if the point was left on the default setting (visible) this key is omitted |
Exporting Bitmasks
Bitmask labels are exported asrleStrings. See our SDK documentation to learn how to decode an rleString.
We strongly recommend exporting Bitmask labels using the Encord SDK. Bitmasks are exported in the JSON format.
Exporting Data Groups
When exporting Data Group labels, 1 JSON file the Data Group plus 1 JSON for each data unit in the Data Group are generated.Data Groups Label Export
| Key | Description | Notes |
|---|---|---|
| label_hash | The Label Row hash | The âhashâ represents a unique identifier |
| branch_name | The branch the label belongs to | main is the default branch in non-Consensus Projects |
| created_at | Time and date the label was created | |
| last_edited_at | Time and date the label was last edited | |
| dataset_hash | The Datasetâs hash | The âhashâ represents a unique identifier |
| dataset_title | The name of the Dataset | |
| data_title | The Data Groupâs name | |
| data_type | The data unitâs file format | Always group for Data Groups |
| is_image_sequence | âtrueâ when the data unit is an image sequence | Always ânullâ for Data Groups |
| data_units | List of all files the Data Group is composed of | Details of the export information for data_units can be found below |
| data_hash | The Data Group hash. | The âhashâ represents a unique identifier for the Data Group |
| data_title | The Data Groupâs name | |
| data_type | The data unitâs file format | Always group for Data Groups |
| data_sequence | The sequence number of this file within the data unit. | 0 represents the first file |
| labels | A list of all frames contained in the Data Grouop | This value is always 0 |
| metadata | Lists the metadata on the Data Group | |
| children | lists the data units contained in the Data Group | layout_key specifies where in the Data Group the data units appears in the Label Editor |
| object_answers | All the attributes in this data unit | The object attributes are identified using their hash |
| classification_answers | All the classifications in a particular data unit | The classification labels are identified using their hash |
| object_actions | The number of states a dynamic attribute can be in. | A change in state occurs each time the attribute answer changes. The objectHash within the object_actions is the attribute answerâs ID. |
| label_status | Indicates whether the data unit has been labeled. | |
| is_valid | Indicates whether the Data Group is valid | |
| video_link | Link to the video saved on your private cloud | Always ânullâ for Data Groups |
Exporting Labels using the SDK
Go here to learn how to export labels using SDK.Label Branches
The branch associated with the labels is specified using thebranch_name key.
The main branch is always displayed first and is identified by the following value:
