This guide explains how to use the Issues feature in Encord. Each step in the process is intended for a specific user role, which is indicated in the heading of that step.
This guide assumes you have already added data into Encord and set up your annotation Projects.
Issue tags can be created in the Organization Settings (as outlined here) or the Project Settings.
More information can be found in the Issue Tags documentation.
Issue tags serve as a system to categorize, group, and filter issues within Projects.
Click Settings in the My organisation section. The Users page appears.
Navigate to the Issue Tags tab. The Issue Tags page appears.
Click + New issue tag to create a new issue tag for your Organization.
Give your Issue Tag a meaningful name and press ENTER to create the Issue Tag.
Repeat Steps 3 and 4 to create as many Issue Tags as necessary.

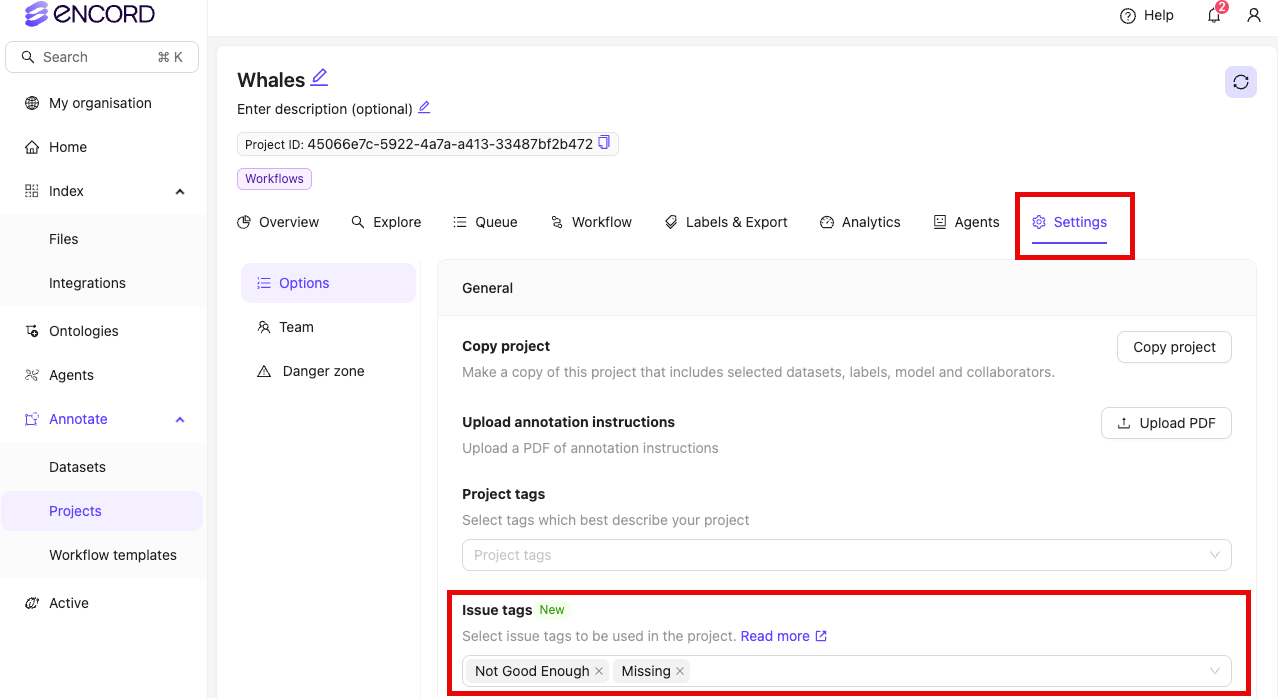

Navigate to your annotation Project.
Navigate to the Settings tab.
Click the dropdown in the Issue tags section.
Select, or type the name of, the issue tag you want to add to the Project.
More information can be found in the Issues documentation.
Issues cannot be created in a Consensus annotate stage.
[Reviewer] Create Label Rejection Issues
Open a review task from the Queue tab of your annotation Project.
Reject a label. The Issues pane opens.
Select any Issue Tags you want to apply to the issue.
Add a comment explaining why the label is being rejected.
Click Reject to create the label rejection Issue.
[Annotator / Reviewer] Create Other Issues
Open a task from the Queue tab of your annotation Project.
Open the Issues pane by clicking the Issues icon.
Click the New issue icon (or keyboard shortcut Ctrl+N).
Click the Apply to dropdown to select the type of issue you want to create.
Select any Issue Tags you want to apply to the issue.
Add a comment to the issue.
If you selected ‘Pin on canvass’ in Step 3, click the desired location on the canvas.
Click Create issue.
More information can be found in the Issues documentation.
Open a task from the Queue tab of your annotation Project. Rejected tasks The Label Editor with the Issues pane already opened appears.
Address the problem raised by the Issue.

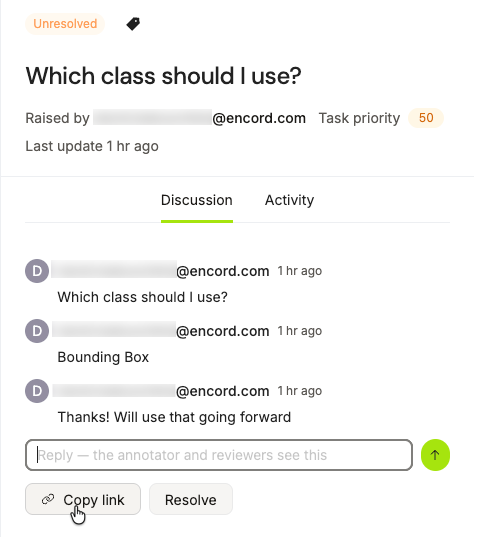

Add a reply to the Issue acknowledging the issue has been addressed.
Resolve the Issue by clicking the tick icon on the thread.
The number of issue actions taken by each Project collaborator can be viewed in the Collaborators tab.
Navigate to the Analytics tab of your Project.
Navigate to the Issues section. Analytics pertaining to Issues appear.
Chart | Description |
---|---|
Issue actions | Shows the number of issues created, resolved, and opened. |
Issue tag occurrence | Shows the count of all issue tags used within the chosen timeframe. |
Issue tag occurrence by class | Shows the actions taken for all objects and classifications in the Ontology. |
The Issue actions chart shows the following:
Example - How to Understand Issue Analytics:
If your Issue actions chart shows:
This means that:
