Manage Annotation Projects

In the Encord platform, select Projects under Annotate.
Select the Project you want to Manage.

Project dashboard

The first thing you see when you click on your Project is the Project dashboard.

This is where you monitor and manage your Project - view your Project’s summary statistics, manage labeling tasks, view your team’s productivity, train models and invite collaborators.

The dashboard is split into the following tabs:

Summary: a high-level view of labeling and productivity statistics.
Explore: a quick way to explore the distribution of instances and labels across data assets in the project.
Queue: Displays all tasks for the Project, separated by stage.
Workflow: Graphically displays the path tasks follow through the Project Workflow.
Labels & Export: for managing all the Project’s labeling activity and tasks.
Performance: a more detailed view of your team’s manual labeling and productivity split into a Summary and Details tab.
Models: for creating, training and using pre-trained computer vision models with your labeled training data.
Settings: editing Project options, Ontology, team collaborators, and other general Project settings.

Tab visibility by role

Legend:

✅ Fully visible and all actions allowed
❌ Not visible
View only: Visible but no actions allowed
Specific actions detailed where applicable

The Performance tab displays different information based on the user’s role. For more details, refer to the Performance dashboard documentation.

The Labels & Export tab for admins is called the Labels tab for Team Managers.

Tab	Annotator	Reviewer	Annotator + Reviewer	Team Manager	Admin
Summary	❌	❌	❌	✅	✅
Explore	❌	❌	❌	✅	✅
Queue	Annotate tab only	Review tab only	Annotate + Review tabs only	✅	✅
Workflow	❌	❌	❌	View only	✅
Labels & Export	❌	❌	❌	View labels only	✅
Performance	Personal performance	Personal performance	Personal performance	Team Performance	Team performance
Models	❌	❌	❌	View only	✅
Settings	❌	❌	❌	Add users (except Admins)	✅ All settings and user management

Update Project status

Contact support for access to this feature.

Admins and Team Managers can change the status of a Project to any of the following:

Not started
In progress
Paused
Completed
Cancelled

Updating the Project status changes the Project icon accordingly.

When the Project status is changed to either Paused, Completed, or Cancelled then Annotators, Reviewers, and Annotator + Reviewers are prevented from opening tasks, and the Initiate button is greyed out. Admins and Team Managers are able to annotate and review tasks as usual, regardless of the Project status.

Tasks can still be opened using back door access. For example if an Admin shares a specific URL of a task with an Annotator, Reviewer, or Annotator + Reviewer.

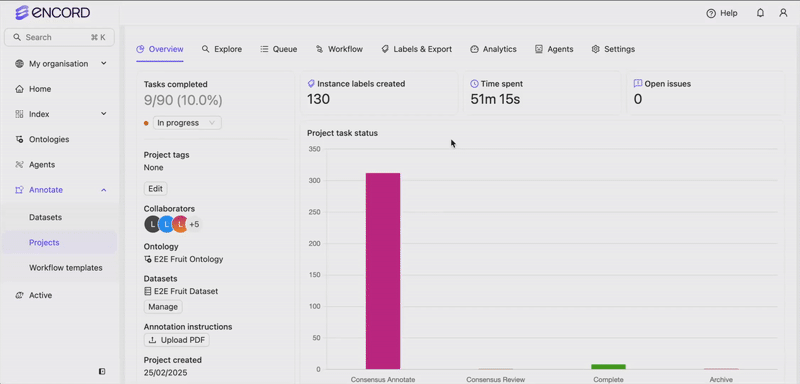

Summary

Clicking a workflow project takes you to its summary dashboard. This dashboard has 2 components and gives you a rich visual display of your project’s progress at a high level.

Project task status overview

Displays the number of tasks that are in each state of your workflow project. The number of states and their names reflect the choices made during workflow project creation.

Click on the stages in the chart key to remove, or include them from the donut view

Explore

The Explore tab is only visible to project Admins and Team Managers.

The Explore tab helps you understand how project annotations are distributed among data assets, at both an instance and label level. It allows a deeper exploration through attributes on objects, as well as frame-level classifications.

Instance statistics: Class distribution across data assets in the given project.
Label statistics: Label distributions within data assets, objects and classifications.

Instance statistics

This section provides the total count of all instances across the datasets in your project.

Project total: Shows total instances (both objects and classifications) across the project by default. To get instance statistics for individual data files, click the drop-down to select a data file.
Select class: Shows the total instances for a particular class. This is a summary of how a given class is distributed across your project’s data assets. The pie chart segments show a breakdown of how that class is split across the data assets.
Display timestamps: Flip the toggle to switch between frame numbers and timestamps for the labels.

Label statistics

This is a summary of how your labels are distributed across the project. The pie chart shows a breakdown of how many labels there are for a given class.

Project total: Shows the total number of labels across different datasets in the project. To get label stats for individual data files, click the drop-down to select a data file.
Objects: Click on the pie chart segment of a class to see the total number of labels and its attributes (sometimes called nested attributes) if available for that class.
Classifications: Shows the global classification at project or individual video level. For example, location, time of day, etc.

Quick definitions of classes, instances and labels

Class: Fundamental unit of the Project’s Ontology. For example the Ontology of a Project annotating traffic
videos could have classes such as Car, Truck, Bicycle, and so on. For more information on objects and classifications, see Ontologies Overview.
Instance: Specific occurrence of a class. Car(0) is an instance of the Car class, for example, it could be a specific black sedan. The single Car(0) instance can appear in a single frame or a range of frames. Therefore, instances may contain multiple labels across frames.
Label: An frame-specific annotation of an instance. For example the annotation of Car(0) on frame 201 is a label.

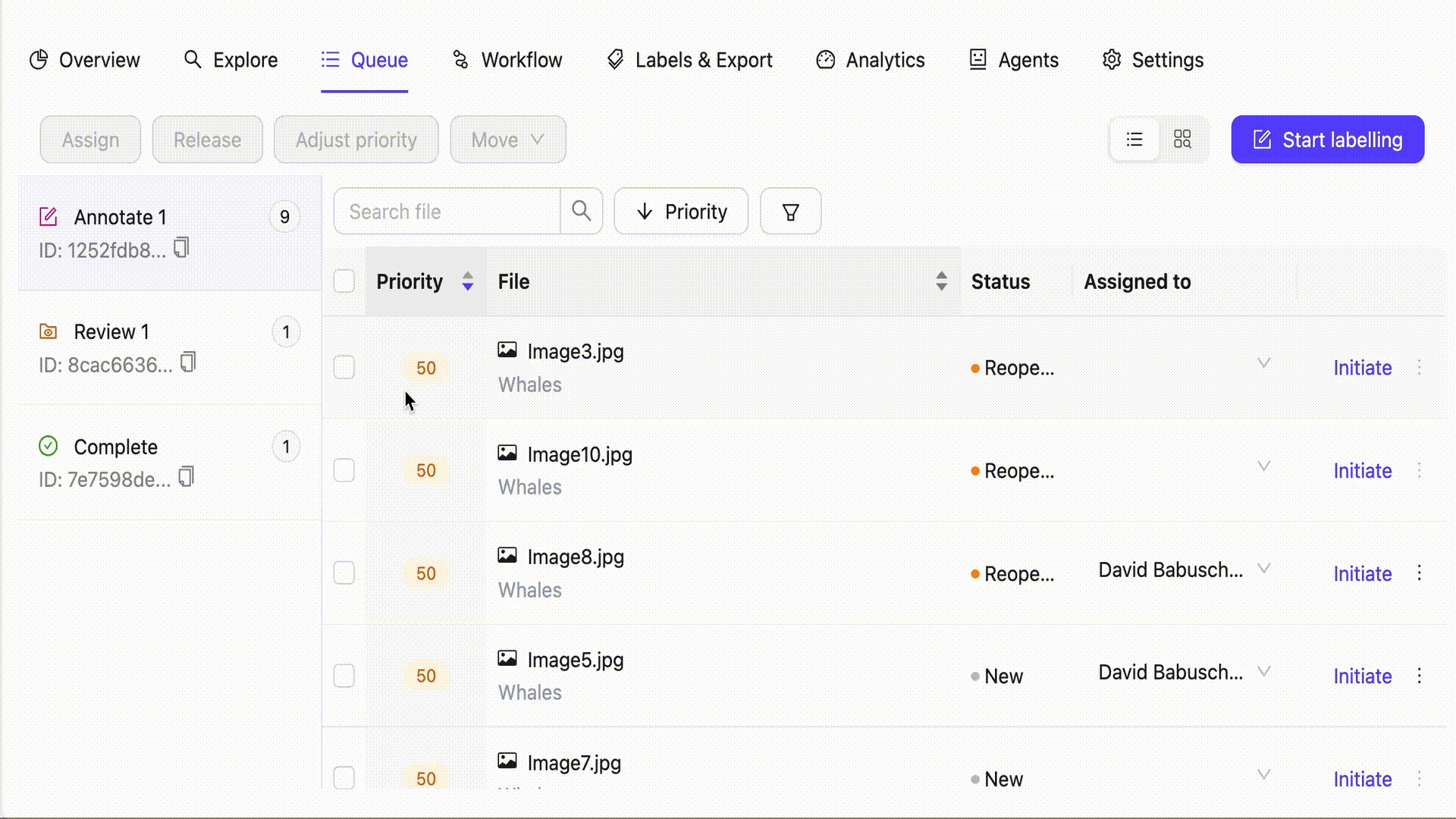

Queue

Use the Queue tab to assign and prioritize tasks and to initiate labeling and reviewing for all users attached to a Project. The Queue tab displays differently depending on the user’s permissions.

Queue (Annotator & Reviewer, Admin, Team Manager)

A - Use the search bar to filter the list of data units being displayed, or to look for a particular data unit.
B - Select a task to assign it to a user, release the task, or adjust its priority number.
C - Filter the list of data units being displayed by task status by Dataset, User, Data Type, or Status. This is the order in which tasks will appear in the Label Editor.
D - Sort the task queue.
E - Use the Start labeling (annotation task) and Start reviewing (review task) buttons to begin labeling or reviewing a task.
F - The list of all Workflow stages shows how many data units each stage currently contains. Each stage can be selected.
G - Shows the task’s priority number. Tasks are listed in descending order of priority by default.
H - Shows the task’s Status.
I - Shows the email address of the user the task is assigned to.
J - Clicking the Initiate button initiates a task. If an annotation stage is selected, an annotation task is initiated. If a Review stage is selected a review task is initiated.

The Queue tab lists tasks in the same order they appear in the Label Editor.

Filter

Tasks can be filtered by either Dataset, User, Data Type, or Status.

Dataset - Filtering by Dataset will only display data units belonging to the selected Dataset(s).
Assignees - Filtering by User will only display tasks assigned to a particular user.
Data Type - Filtering by Data Type will only display data units of a specific type.
Status - Filtering by Status will only display tasks with a specific status.

Sort by

You can sort the task queue by clicking Sort by next to the filter button. Select whether you want to sort the task queue by:

Task priority, or alphabetically by the name of the data unit.
In ascending or descending order.

The default sorting is in descending order of task priority.

Status

The task Status indicates which actions had previously been taken on a task.

New - The task has not been worked on since being added to the Project.
Reopened - The task was rejected during the Review stage, and has been returned for re-labeling.
Skipped - The task was skipped by one or more annotators.

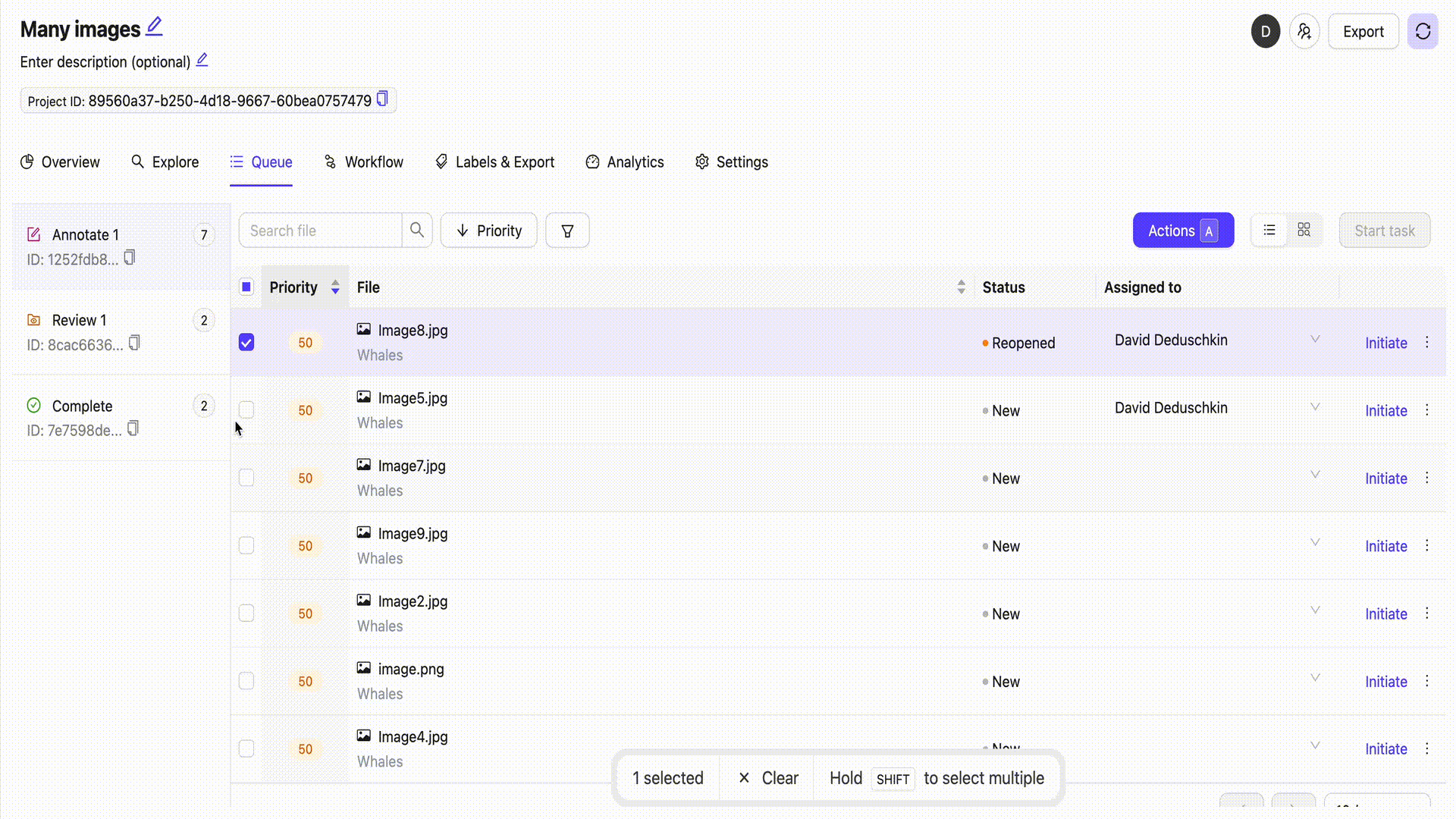

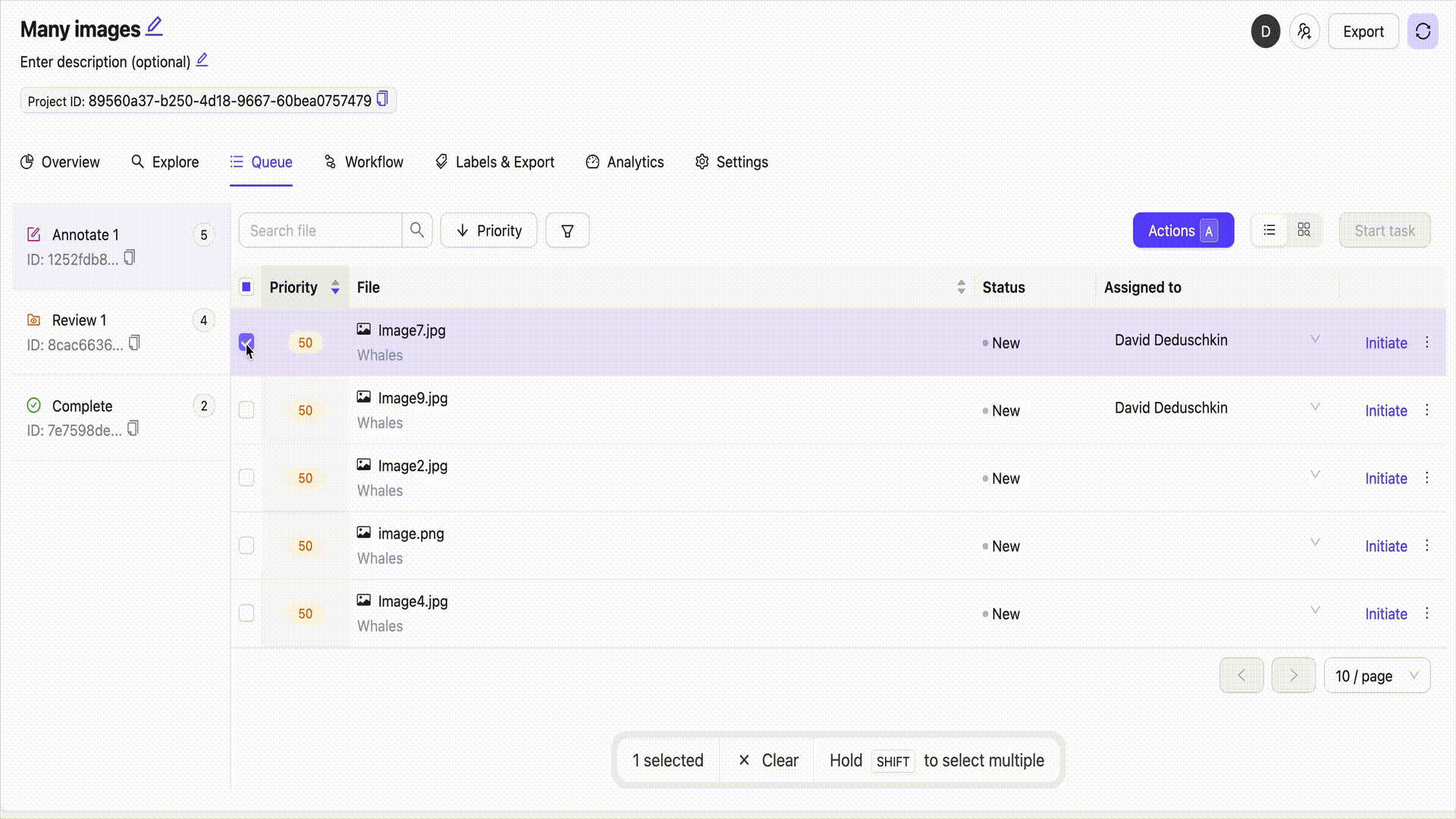

Assigning and releasing tasks

Only Admins and Task Managers can assign and release tasks.

Tasks can only be assigned to collaborators that have been added to a given Workflow stage. Find out more in our section on managing collaborators.

Tasks can be assigned to specific users by selecting them from the list and clicking the Assign button, as shown below. Once a task is assigned, only the assigned user is able to open the task. Alternatively, click the small arrow button in the Assigned to column to assign an individual data unit.

Releasing a task is the opposite of assigning a task, and removes any user the task was assigned to. To release any number of tasks, select them from the list and click the Release button located next to the Assign button shown above.

Unassigned tasks can be initiated by all users.

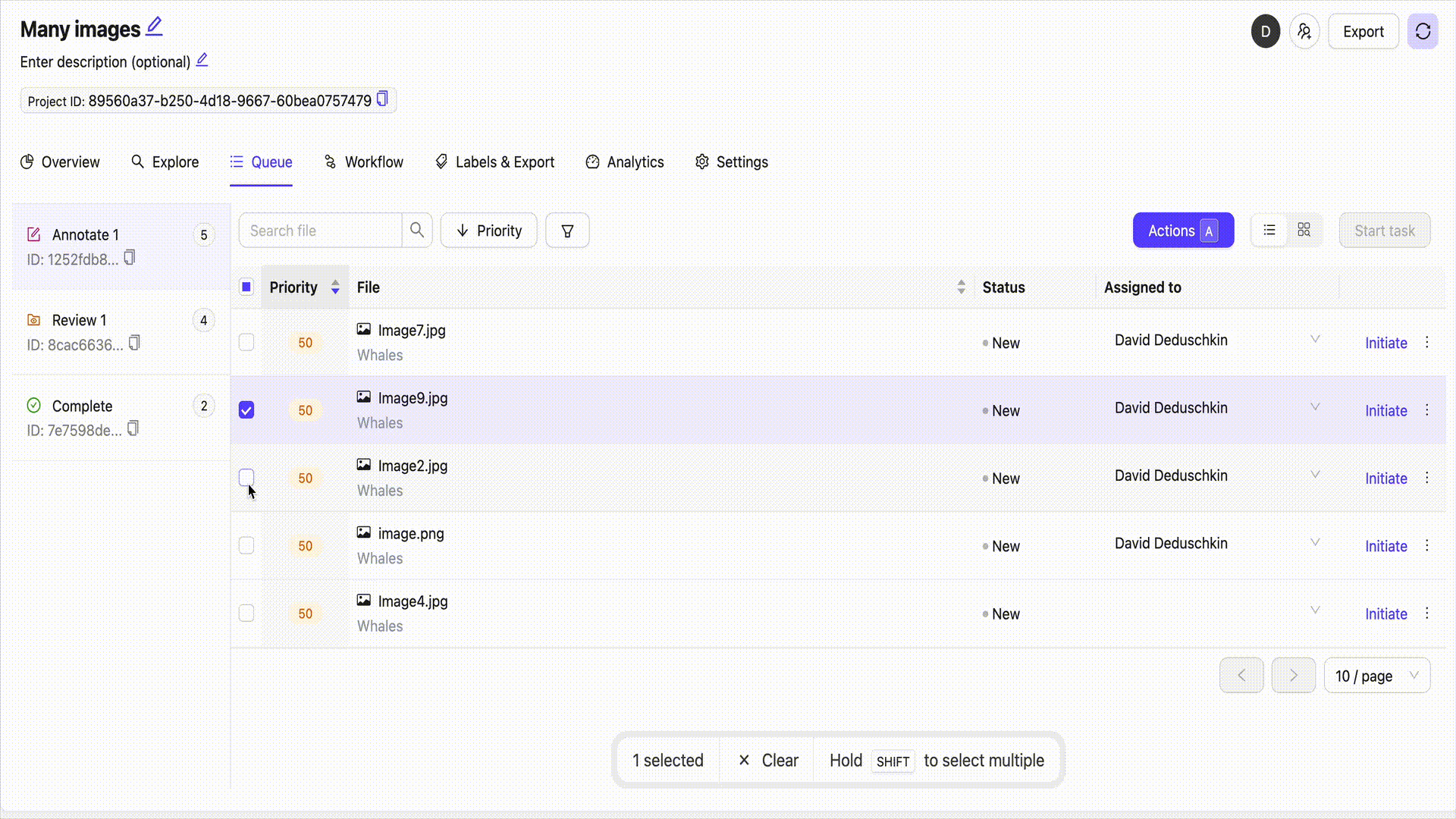

Task priority

Only Admins and Task Managers can set task priority.

All annotation and review tasks can be assigned a priority level to manage workflow efficiency. Each task is assigned a priority value ranging from 0 to 100, where the default value is set to 50. A value of 100 indicates a high-priority task, requiring immediate attention, where a value of 0 signifies a low-priority task. Annotation and review tasks with higher priority levels are displayed in the label editor in descending order of priority.

To update task priority:

Click on the number representing the task’s current priority. This action opens the priority setting interface for that particular task. Alternatively, select the task and click the Adjust priority button.
Adjust the task’s priority by either using the slider for quick selection or manually entering a specific number between 0 and 100 in the input field provided. This allows for precise control over the task’s priority level.
Once the desired priority level is set, finalize your changes by clicking the Update button. This action saves the new priority setting for the task, effectively updating its status in the task queue.

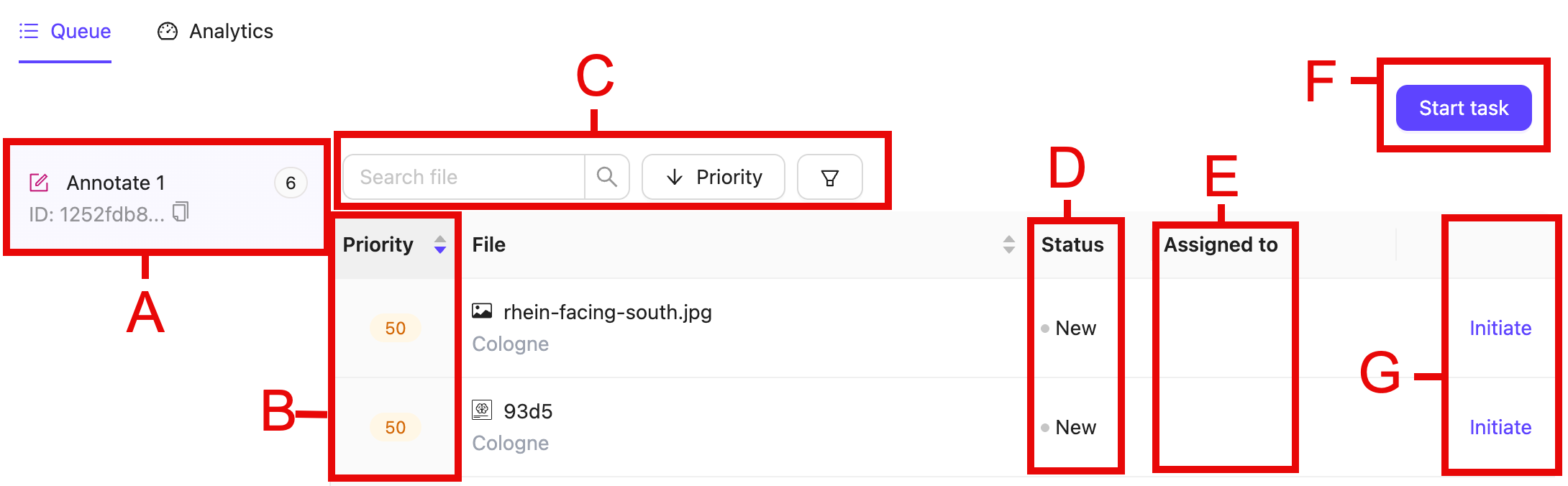

Queue (Annotators)

Annotators are presented with the following Queue tab, from which they can manage their annotations.

A - The list of annotation stages shows how many data units each stage currently contains. If more than one stage is listed, clicking a stage lets you view the tasks it contains.
B - Shows the task’s priority number. Tasks are listed in descending order of priority by default.
C - The list of tasks / data units in your queue. Unassigned tasks are also visible and they can be initiated by all Annotators.
D - The task status.
E - The user a task is assigned to. A blank field indicates an unassigned task.
F - Click the Initiate button next to a task to start annotating.
G - The Start labeling button opens the Label Editor, starting with the highest priority task.

The Queue tab lists tasks in the same order they appear in the Label Editor.

Initiating an unassigned task automatically assigns the task to the Annotator.

Queue (Reviewers)

A - The list of review stages shows how many data units each stage currently contains. If more than one stage is listed, clicking a stage lets you view the tasks it contains.
B - Shows the task’s priority number. Tasks are listed in descending order of priority by default.
C - The list of tasks / data units in your queue. Unassigned tasks are also visible and they can be initiated by all Reviewers.
D - The task status.
E - The user a task is assigned to. A blank field indicates an unassigned task.
F - Click the Initiate button next to a task to review it .
G - The Start reviewing button opens the Label Editor, starting with the highest priority task.

The Queue tab lists tasks in the same order they appear in the Label Editor.

Initiating an unassigned task automatically assigns the task to the Reviewer.

Labels

The Labels tab is only visible to project Admins and Team Managers.

The Labels tab is your gateway to auditing and exporting labels created in your project.

Access to each pane will depend on the user’s project role. We quickly summarize the purpose of each tab, and the roles which can access each below.

Role	Activity	Queue	Data	Instances
Annotator	❌	✅	❌	❌
Reviewer	❌	✅	❌	❌
Annotator + Reviewer	❌	✅	❌	❌
Team Manager	✅	✅	✅	✅
Admin	✅	✅	✅	✅

The labels dashboard features the following tabs:

Data: A complete overview of all tasks in the project, with the option to export your labels on a per-task basis.
Label Instances: The Label Instances tab lets you use the unique instance identifier to search the project for a specific instance, and jump directly into the editor to confirm the status of an annotation visually.

Data

The Data tab provides a complete overview of all tasks in the project, and lets you see which workflow stage each task is in.

Export labels

Select the data units you want to export labels for and click the Export and save button highlighted in the screenshot below to export labels. See our documentation on exporting labels for more information.

Save label version

Select the data units you’d like to save label version for and click the Save new version button highlighted in the screenshot below. It will be listed in the Saved versions tab.

A new label version is saved each time you export labels.

Label versioning allows you to keep track of your label history over time by providing a snapshot of labels at a point in time. Label versions can be exported and analyzed to track annotation performance over time.

Label Instances

The Instances tab allows Administrators and Team Managers to search within the data to directly find specific instances Recall that an annotation instance correlates to a unique instantiation of a specific ontology class in a data asset. For example, if you have the ‘Person’ class in your ontology, the first instance of a ‘Person’ in a given data asset will be indicated in the interface as ‘Person (0)’, the second as ‘Person (1)’ and so on. Instances, therefore, can exist in multiple frames of a data asset, and indicate the same object. Use the Instances tab to search for specific instances of objects or classifications using their Identifier.

Instance identifiers are unique at the project scope, and can be found in any of the following ways:

From inside the label editor, by clicking on a particular instance, and then selecting ‘Copy identifier’ from the instance action menu.
From inside exported labels, where they are known as the objectHash or classificationHash as appropriate.
When uploading labels using the SDK, you may specify your own objectHash or classificationHash.

Once you have an identifier of interest, use the ‘Search instance’ interface to filter the instances by identifier to quickly find the instance you’re interested in. This can be particularly handy when you want to visually confirm an annotation you may not have seen before, but for which you have the identifier.

After locating your instance of interest, click View from the ‘Actions’ column to jump deeply into the dataset straight to where the instance is first annotated.

Saved versions

The Saved versions tab displays information for versions of your labels. The Actions column lets you:

Export label versions by clicking the Download version icon in the Actions column. For format of exported labels has the same structure as outlined in the export documentation.
Delete label versions by clicking the Delete version icon in the Actions column.

Performance

The Performance tab displays different information depending on the user role.

Annotator, Reviewer, and Annotator + Reviewer roles see a single tab showcasing their individual performance. The information is categorized by the actions taken by the user, with graphs displaying the number of labels added, labels edited, and labels deleted. An Annotator + Reviewer sees two separate graphs: one for annotation tasks and another for review tasks.
Team manager and Admin roles see the Summary and Details tabs.

Performance - Summary

The Summary tab of the Performance dashboard is only visible to project Admins and Team Managers.

The Summary tab of the performance dashboard provides an overview of your team’s labeling and productivity.

The Summary tab only displays actions taken in the Label Editor. Actions taken in the SDK DO NOT display here.

Task actions over time

View the number of tasks in a Project that have been approved, rejected, and submitted for review over a given period of time.

The height of a bar represents the total number of tasks.
The height of each color within a bar represents the number of approved, rejected, and submitted tasks.

A: Set the time period you would like to see displayed by selecting a range of dates.
B: The Hide days without any actions toggle removes all days at which no actions were taken from the view.
C: Download a CSV file of the data.
D: Display the data as a bar chart, or a table. While the chart provides a clear visual representation, the table provides exact figures for a more detailed picture of your team’s performance.

Instance Label actions over time

View the number of instance label actions in a project that have been approved, rejected, and submitted for review over a given period of time.

A: Set the time period you would like to see displayed by selecting a range of dates.
B: Download a CSV file of the data.
C: Display the data as a bar chart, or a table. While the chart provides a clear visual representation, the table provides exact figures for a more detailed picture of your team’s performance.

Within your specified time period, you can choose which dates to display by using the slider located beneath the graph.

Team collaborators

The Team collaborators section shows the duration of time each Project collaborator spend working on a given file.

A. Table entries can be filtered according to dates by clicking the range of dates, and selecting the start and end date of the period you would like to see table entries displayed for.

B. Table entries can be downloaded in CSV format by clicking the Download CSV button.

C. When lots of entries are present they will be split across a number of different pages. The number of table entries per table can be adjusted.

Performance - Details

The Details tab of the Performance dashboard is only visible to project Admins and Team Managers.

The Details tab of the performance dashboard gives a more detailed view of your team’s manual labeling and productivity.

The Details tab of the performance dashboard only shows information for labels created in the Label Editor. Labels submitted via the SDK will not be shown on the Details tab. This includes labels that were submitted using the SDK, and edited in the Label Editor.

You can specify a range of dates, as well as whether statistics should be displayed for labels, or instances. More information on instances and labels can be found here.

Submissions chart

The submissions chart displays the number of submitted labels or instances over the specified time period. The chart can be filtered to show submissions for specific annotators or classes.

If you filter on both Annotators and Classes then the resulting chart will show the submission statistics for the selected annotators and for selected labels.

Reviews chart

The reviews chart displays the cumulative number of accepted and rejected labels or instances over the specified time period.

Annotator’s table

The annotator’s table displays all the relevant statistics for all annotators in a Project. It can be filtered on classes to show annotator statistics only for the selected classes.

User: The annotator’s email.
Rejection rate: Percentage of their labels or instances that have been rejected in the review process.
Submitted labels / instances: Number of labels or instances that the annotator has submitted for review
- Repeated submissions are not counted.
Accepted labels / instances: Number of labels or instances that the annotator created that passed the review process.
Rejected labels / instances: Number of labels or instances that the annotator created that we’re rejected during the review process. Note that this can be higher than the number of submitted labels / instances since a label or instance can be rejected multiple times during the review process but the submission will only be logged once.
Total session time: Time spent labeling.

Reviewer’s table

User: The reviewers email.
Rejection rate: Percentage of labels or instances that they rejected in the review process.
Accepted labels / instances: Number of labels or instances that the reviewer accepted.
Rejected labels / instances: Number of labels or instances that the reviewer rejected.
Total session time: Time spent reviewing.

Objects and classifications table

Each row in the objects and classifications table can be expanded to show statistics attributes.

Class: The class name.
Rejection rate: Percentage of labels or instances rejected in the review process.
Reviewed labels / instances: Number of labels or instances of the class that have gone through the review process.
Accepted labels / instances: Number of labels or instances of the class that have passed the review process.
Rejected labels / instances: Number of labels or instances of the class that failed the review process.
Avg. time to annotate: Average time spent annotating this class.

Performance - Task Actions

The Task Actions tab of the Performance dashboard is only visible to project Admins and Team Managers.

The Task Actions tab of the Performance dashboard gives an at-a-glance detailed view of your team’s labeling, reviewing, and productivity for tasks and the time spent on those tasks.

You can filter the graphs by the following:

Date time range
Workflow stage
Collaborator
Dataset
Data unit title

Performance - Collaborators

The Collaborators tab of the Performance dashboard is only visible to project Admins and Team Managers.

The Task Actions tab in the Performance dashboard provides a detailed, at-a-glance view of time spent by Project collaborators across different Workflow stages.

Models

The Models tab is only visible to project Admins and Team Managers.

The Models tab is where you attach and manage models for automated labeling.

See our documentation on automated labeling here.

Export

The Export tab is only visible to project Admins.

Use the Export tab to export your data. Learn more by visiting our exporting data page.

Workflow

The Workflow tab is only visible to project Admins and Team Managers.

The Workflow tab lets you view and edit the Project’s Workflow. To begin editing the Workflow, click the Edit button on the canvas.

Settings

The Settings tab is only visible to Project Admins and Team Managers.

The Settings tab allows you to make modifications to your Project using the following tabs:

Options - Copy a Project, modify Datasets, modify Ontology, upload annotation instructions, modify Project tags, and set a default editor layout.
Danger zone - Delete your Project.

Copy a Project

To copy a Project:

Click the Copy project button in the Options section of the Project’s Settings.
Select the parts of the Project to copied into the new Project. The Ontology has to be copied and is therefore always selected. All components of the current Project are selected by default.

You can copy any combination of the following assets:

Datasets: all datasets are copied. New annotation tasks will be created for all videos and image sequences if their labels are not copied over.
Labels: copy the labels in specified data units. All labels are copied by default. Change the dropdown to Selected Labels ,as seen in the image below, to only include specific labels in your new Project. Click the +Advanced settings button to select the state of the data units labels should be copied for.
Models: this will copy all the models in your Project along with their training logs.
Collaborators: copy all Project users with their respective roles. Project admins are copied regardless of whether this is selected.

Click the Make a copy button to copy the Project with the specified components.

Upload annotation instructions

Navigate to the Settings tab of your Project.
Click the Add instructions button to upload instructions for your annotators in PDF format.

To ensure the best possible results, provide as much detail as possible about what you would like annotated and how precise bounding boxes should be drawn. For example, instead of saying ‘person’, consider defining what should constitute a person for your annotators - only a full person? A torso? Or should any part of a person in a frame be labeled as a ‘person’? The more specific your annotator instructions, the higher the chances that your annotators perform well.

Once uploaded, annotation instructions are be accessible within the Label Editor, and the Workflow tab of your Project.

Project tags

Tags are created and managed on the Organization level. Once created they can be added to individual Projects.

You can add tags to a Project if you are part of an Organization.

Project tags allow you to:

Flexibly categorize and group your Projects.
Filter your Projects.

You can add tags to your Projects in:

When creating a Project.
In the Settings page of a Project.

To add or remove Project tags:

Navigate to the Options tab and click the Project tags drop-down. All available tags in your Organization are shown.
Click on a tag to add it to a Project.

Remove a tag from your Project by clicking the same tag again, or clicking the x button next to its name.

Filtering Projects by tags

You can filter your Projects based on the tags they contain.

Click the Projects on the left side navigation
Click the ‘Filter by tags’ drop-down and select one or more Project tags. Only Projects with the selected tags are now displayed.

Edit Project Ontology

You can view or switch the Ontology attached to your Project.

Changing the Ontology can render existing labels invalid and lead to data inconsistency.

Click the Switch ontology button to switch the Ontology linked to your Project. The resulting pop-up allows you to choose an existing Ontology from a list, or create a new Ontology for this Project.
Click the View ontology button to view the details of the Ontology that is attached to the current Project.

Edit Datasets attached to a Project

The Datasets section allows you to attach or detach any number of Datasets to your Project by clicking Manage. You must create a new Dataset in the Datasets section for it to become available in a Project’s settings.

Manage Project collaborators

To manage Project collaborators, select the Team pane in your project Settings. Collaborators can be added individually or as groups of users.

Here you can invite collaborators to the Project, and configure their roles.

To add collaborators to a Project:

Click the + Invite collaborators button. A dialog appears.

Select a user role for the collaborator you want to add by selecting an option from the list.
Type the email address of the user you want to add and select the user from the list.
Click the Add button to add the user with the specified role.

To add collaborators as a group:

To add collaborators as a group, your Organization needs to have user groups. Navigate to our documentation on creating user groups for more information.

In the Groups section, click on Manage. The Manage groups dialog appears.

Click the Select group drop-down and pick a group you want to add to the Project.
Click the Select Role drop-down to assign a role to the group of collaborators.
Click Add to add the group to the Project.

To delete a group from the Project, click the Delete button next to the group name.

To change collaborator roles:

Only Project admins can modify collaborator roles. Admin roles cannot be changed, not even by other admins.

You can assign the following roles to collaborators:

Annotator: annotators are responsible for labeling. This is the default role for all collaborators.
Reviewer: for reviewing labeled tasks.
Annotator & reviewer: a combination of annotator and reviewer.
Team manager: a team manager can assign tasks to other users, and add collaborators to the project.
Admin: gives this collaborator full administrative control over this Project. This is an irreversible action.

Custom editor layout

Contact support to gain access to custom editor layouts.

You can customize the default Label Editor layout by uploading a JSON file that defines your preferred arrangement. These JSON files can be added in the Project settings and are applied to all tasks in a Project.

Custom editor layouts depend on a file’s client_metadata or their DICOM tags. This means that custom editor layouts only work for files that contain client_metadata or DICOM tags. Watch the video tutorials below to learn how it fits together.

To upload an editor layout:

Navigate to the Project settings.
Click on Layouts.
Click Upload JSON.
Select the JSON file containing the layout you want the Label Editor to have.

JSON file requirements:

The JSON file must follow the JSON schema defined here. The following fields are required:

In Workflow Projects, tasks with matching values in the field specified by the topLevelGridFilter progress through the Workflow as a unit. When encord-LayoutGroup is set as the topLevelGridFilter, for example, tasks sharing the same encord-LayoutGroup value are opened, submitted, reviewed, and reopened together, enabling seamless coordination across the Workflow. This behavior does not apply in Manual QA Projects.

The operator value must be =. This means the value must be equal to.

"topLevelGridFilter": {
  "client_metadata": {
    "key": "encord-LayoutGroup",
    "operator": "="
  }
}

Another example is displaying images from the same patient together in the Label Editor using the topLevelGridFilter to group tasks based on a patient-id.

"topLevelGridFilter": {
  "client_metadata": {
    "key": "patient-id",
    "operator": "="
  }
}

The grid key defines the basic layout of the Label Editor. The grid is a list of lists, where each value represents a window.

In the following example, the values 0, 1, 2, and 3 represent individual windows. The layout is defined as two separate lists [0, 1] and [2, 3], resulting in a 2x2 grid configuration:

  "grid": [[0, 1], [2, 3]]

This configuration translates to the following visual layout:

The gridContent key specifies what content to display in each window defined in the grid. It includes the following elements:

Grid Values: Assigns content to each window based on its grid value.
Content Query: Defines the criteria for displaying content, which can be either dicom_tags_query or client_metadata_query.
Conditions: Specifies the conditions for displaying the content, which can be either and_conditions or or_conditions.
Operator value can only be =. This means the value must be equal to.

In the following example, window 0 displays content based on a dicom_tags_query with specific conditions.

The dicom_tags_query specifies that the content is determined by DICOM tags.
The and_conditions key specifies that all conditions listed must be met for the content to be displayed.
There are two conditions:
1. The DICOM tag 00185101 must equal CC.
2. The DICOM tag 00200062 must equal R.

This setup ensures that the content for window 0 is only displayed if both conditions are satisfied.

  "gridContent": {
    "0": {
      "dicom_tags_query": {
        "and_conditions": [
          {
            "tag": "00185101",
            "operator": "=",
            "value": "CC"
          },
          {
            "tag": "00200062",
            "operator": "=",
            "value": "R"
          }
        ]
      }
    }
    }

In the following example, window 1 displays content based on a client_metadata_query with specific conditions.

The client_metadata_query specifies that the content is determined by client metadata.
The or_conditions key specifies that any of the conditions listed must be met for the content to be displayed.
There are two conditions:
1. The client metadata group-id must equal A.
2. The client metadata group-id must equal B.

This setup ensures that the content for window 1 is only displayed if the group-id is either A or B.

  "gridContent": {
    "1": {
      "client_metadata_query": {
        "or_conditions": [
          {
            "key": "group-id",
            "operator": "=",
            "value": "A"
          },
          {
            "key": "group-id",
            "operator": "=",
            "value": "B"
          }
        ]
      }
    }
  }

Complete example

Add client metadata to files

Editor layouts are based on DICOM tags for DICOM files or on client_metadata for all other use cases. We provide templates for common mammography layouts based on DICOM tags here.

This example uses client_metadata. The following SDK script can be used to add client metadata to specific data units in a Dataset.

from encord import EncordUserClient
from encord.client import DatasetAccessSettings

# Instantiate Encord client by substituting the path to your private key
user_client = EncordUserClient.create_with_ssh_private_key(
                ssh_private_key_path="<private_key_path>",
            )


# Specify a Dataset to read or write metadata to
dataset = user_client.get_dataset("<dataset_hash>")

# Fetch the Dataset's metadata
dataset.set_access_settings(DatasetAccessSettings(fetch_client_metadata=True))

# Add your file names and client metadata here
layouts = {
  'Image1.jpg': {"encord-EditorGridPosition": "A", 'encord-LayoutGroup': '1'},
  'Image2.jpg': {"encord-EditorGridPosition": "B", 'encord-LayoutGroup': '1'},
  'Image3.jpg': {"encord-EditorGridPosition": "A", 'encord-LayoutGroup': "2"},
  'Image4.jpg': {"encord-EditorGridPosition": "B", 'encord-LayoutGroup': '2'},
  'Image5.jpg': {"encord-EditorGridPosition": "A", 'encord-LayoutGroup': '1'},
  'Image6.jpg': {"encord-EditorGridPosition": "B", 'encord-LayoutGroup': '1'},
  'Image7.jpg': {"encord-EditorGridPosition": "A", 'encord-LayoutGroup': "2"},
  'Image8.jpg': {"encord-EditorGridPosition": "B", 'encord-LayoutGroup': '2'},
  'Image9.jpg': {"encord-EditorGridPosition": "A", 'encord-LayoutGroup': "1"},
  'Image10.jpg': {"encord-EditorGridPosition": "B", 'encord-LayoutGroup': '1'},
  'Image11.jpg': {"encord-EditorGridPosition": "A", 'encord-LayoutGroup': "2"},
  'Image12.jpg': {"encord-EditorGridPosition": "B", 'encord-LayoutGroup': '2'},
}

for dr in dataset.data_rows:
  dr.client_metadata = layouts[dr['data_title']]
  print (dr.title)
  print (dr.client_metadata)
  dr.save()

Create a JSON file

Create a JSON for specifying the editor layout that suits your needs.

In the JSON file below:

The grid arrangement is configured to display two files side by side in the Label Editor.
The gridContent section specifies that tasks in either position (0 or 1) can have client metadata values for encord-EditorGridPosition set to either A or B.

The topLevelGridFilter is defined as encord-LayoutGroup, meaning tasks with matching encord-LayoutGroup metadata values are displayed together in the Label Editor, ensuring they appear side by side when they share the same encord-LayoutGroup values.

{
  "grid": [
    [0],
    [1]
  ],
  "gridContent": {
    "0": {
      "client_metadata_query": {
        "or_conditions": [
          {
            "key": "encord-EditorGridPosition",
            "operator": "=",
            "value": "A"
          },
          {
            "key": "encord-EditorGridPosition",
            "operator": "=",
            "value": "B"
          }
        ]
      }
    },
    "1": {
      "client_metadata_query": {
        "or_conditions": [
          {
            "key": "encord-EditorGridPosition",
            "operator": "=",
            "value": "A"
          },
          {
            "key": "encord-EditorGridPosition",
            "operator": "=",
            "value": "B"
          }
        ]
      }
    }
  },
  "topLevelGridFilter": {
    "client_metadata": {
      "key": "encord-LayoutGroup",
      "operator": "="
    }
  },
  "$schema": "https://raw.githubusercontent.com/encord-team/Annotate/main/editor-layouts/editor_layout_schema.json"
}

Create a JSON file

Upload the JSON file to your Project in Encord.

Navigate to the Project settings.
Click on Layouts.
Click Upload JSON.
Select the JSON file containing the layout you want the Label Editor to have.

Create a JSON file

Open any task in the task queue of your Project.

The JSON file in this example results in the following Label Editor layout.

We provide an end-to-end walkthroughs for how to set up ustom editor layouts using :

clientMetadata here.
DICOM Tags here.

Delete Project

You can delete your Project by going to the Danger zone tab of the Project settings.

To delete a Project, click the red Delete project button.

Deleting your Project does not delete the Datasets in the Project, but will delete the Project’s labels and Ontology.

Join Projects in your Org

Organization Admins can search for and join any Projects that exist within the Organization.

Navigate to Projects under the Annotate heading in the Encord platform.
Select the All Encord projects tab.
Find the Project you want to join.
Click Join project to join the Project.

When an Organization Admin joins a Project, they are automatically assigned the Admin user role for that Project.

Projects can be filtered by Project owner or Project tags.

See all Projects you belong to by clicking the Filter by project owner search bar, and selecting My projects only.

Was this page helpful?

Create Annotation Projects Workflows and Templates

On this page

Project dashboard
Tab visibility by role
Update Project status
Summary
Project task status overview
Explore
Instance statistics
Label statistics
Quick definitions of classes, instances and labels
Queue
Queue (Annotator & Reviewer, Admin, Team Manager)
Filter
Sort by
Status
Assigning and releasing tasks
Task priority
Queue (Annotators)
Queue (Reviewers)
Labels
Data
Export labels
Save label version
Label Instances
Saved versions
Performance
Performance - Summary
Performance - Details
Performance - Task Actions
Performance - Collaborators
Models
Export
Workflow
Settings
Copy a Project
Upload annotation instructions
Project tags
Edit Project Ontology
Edit Datasets attached to a Project
Manage Project collaborators
Custom editor layout
Delete Project
Join Projects in your Org

Get started

General

Index

Annotate

Active

Other

​Project dashboard

​Tab visibility by role

​Update Project status

​Summary

​Project task status overview

​Explore

​Instance statistics

​Label statistics

​Quick definitions of classes, instances and labels

​Queue

​Queue (Annotator & Reviewer, Admin, Team Manager)

​Filter

​Sort by

​Status

​Assigning and releasing tasks

​Task priority

​Queue (Annotators)

​Queue (Reviewers)

​Labels

​Data

​Export labels

​Save label version

​Label Instances

​Saved versions

​Performance

​Performance - Summary

​Performance - Details

​Performance - Task Actions

​Performance - Collaborators

​Models

​Export

​Workflow

​Settings

​Copy a Project

​Upload annotation instructions

​Project tags

​Edit Project Ontology

​Edit Datasets attached to a Project

​Manage Project collaborators

​Custom editor layout

​Delete Project

​Join Projects in your Org

Project dashboard

Tab visibility by role

Update Project status

Summary

Project task status overview

Explore

Instance statistics

Label statistics

Quick definitions of classes, instances and labels

Queue

Queue (Annotator & Reviewer, Admin, Team Manager)

Filter

Sort by

Status

Assigning and releasing tasks

Task priority

Queue (Annotators)

Queue (Reviewers)

Labels

Data

Export labels

Save label version

Label Instances

Saved versions

Performance

Performance - Summary

Performance - Details

Performance - Task Actions

Performance - Collaborators

Models

Export

Workflow

Settings

Copy a Project

Upload annotation instructions

Project tags

Edit Project Ontology

Edit Datasets attached to a Project

Manage Project collaborators

Custom editor layout

Delete Project

Join Projects in your Org
