Files is your one-stop shop for everything related to data in Encord - offering robust cloud storage capabilities along with intuitive options for managing, organizing, and integrating your data into Datasets.
Data is structured into folders and subfolders. All files must be placed into folders and cannot be added to the top level / root directory.

​
What can I see in Files?

Organization admins can see all the files and folders created by users in your Organization. Non-admin users can view all folders they create and files they upload. Additionally, they can see any folders they have been added to as a viewer or admin. For more details, refer to Manage folder collaborators.

​

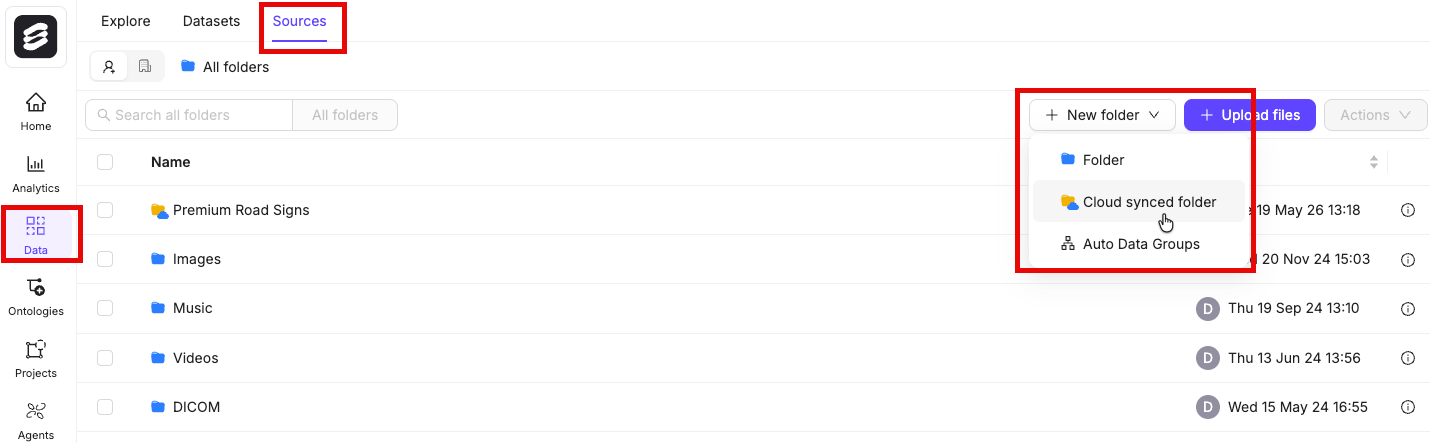

Create a Folder

  1. Navigate to Files under the Index heading in the Encord platform.
  2. Click the + New folder button to create a new folder. Select the type of folder you want to create.
  1. Give the folder a meaningful name and description.
  2. Click Create to create the folder. The folder is listed in Files.

​
Add files to a Folder

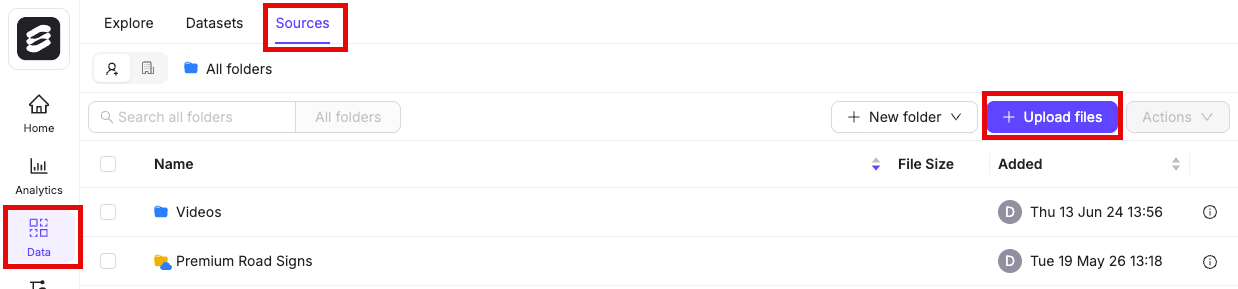

  1. Navigate to Files under the Index heading in the Encord platform.
  2. Click the +Upload files button
You can also right-click a folder to add data.
  1. Select a folder to upload your files to. You can click +New folder to create a new folder.
  2. Select the type of data you want to add.
  • A - Upload : Drag and drop local images and / or videos. Click Upload to finish.
  • B - Batch images as : Create an image group or image sequence from local images. See our section on creating image groups and image sequences for more information. Click Upload and batch images to finish.
  • C - Audio Drag and drop local audio files. Click Upload to finish.
  • D - DICOM : Create a DICOM series from local DICOM files. Click Upload to finish.
To import DICOM files, Encord requires the files to have the following DICOM tags:Rows Columns StudyInstanceUID SeriesInstanceUID SOPInstanceUID PatientID The following DICOM tags are required to render DICOM images in 3D:ImagePositionPatient ImageOrientationPatient SliceThickness PixelSpacing
  • E - Import from private cloud : Add any data stored in your cloud storage. At least one data integration is required to register cloud data. Learn how to upload private cloud data here. Click Import to finish.

​
Create Image Groups and Image Sequences

Image groups and image sequences are created when you upload files into Encord in Files.
  1. Open the Add data dialog.
  2. Select the Batch images as tab.
  3. Select Image group to create an image group. Select Image sequence to create an image sequence.
  1. Drag-and-drop the local images you want to batch into an image group or image sequence.
  2. Click Upload and batch images to create the image group or image sequence.
  3. A file representing the image group or image sequence is created in the folder. A new folder appears containing all the constituent images of the image group or image sequence that was created.
  • The new folder containing the constituent images is not synced.
  • Adding new images to this folder does not add them to the image group or image sequence.
  • Files contained in the image group or image sequence cannot be deleted from the folder until the image group or image sequence is deleted.

​
Register Cloud Data

We recommend uploading files in batches not exceeding 2GB, to ensure upload does not exceed 3 hours.
To add data from your private cloud you need the following: See our documentation on data integrations, and adding cloud data for comprehensive guides.

​
Add data to Datasets

After data is uploaded to Files it can be added to one or multiple Datasets.
  1. Locate and select the data you want to add to a Dataset.
To add multiple files to a Dataset, bulk-select files by selecting the first file, and then selecting the last file while holding the Shift key on your keyboard.
  1. Right-click your selection and select Add to dataset. A dialog appears.
  1. You have the option to:
  • Add data to an existing Dataset by clicking Add next to the Dataset’s name on the Existing datasets tab. You can add data to multiple Datasets.
  • Create a new Dataset to add your data. Select the +New dataset tab and give the Dataset a meaningful name and description. Click Add to new dataset to add the files to the new Dataset.

​
View, Search, and Manage your Files

Files allows you to search for data units, and view which Datasets each data unit is belongs to. The global search bar searches all data in Files, irrespective of which folder is currently open.
Click a data unit to see file specific details. Navigate to the Linked to tab to see which Datasets this file is added to. Click the details icon next to the Dataset to:
  • View the Dataset.
  • Remove the selected file from Datasets.

​
Delete and Move Files and Folders

Right-click a file, folder, or a selection of multiple files to see the options available to you.
  • To delete files and folders, right-click the selection and select Delete.
Deleting a file removes it from all Datasets it was added to.
  • To move files and folders to a different folder, right-click the selection and select Move to another folder. A dialog appears. Start typing the name of the folder, select the folder you want to move the selection to, and click Move to confirm.

​
Folder Permissions and Activity

Folder details are automatically displayed whenever a folder is:
  • Selected
  • Open and no data unit is selected

​
Manage Folder Collaborators

Organization admins can see all the files and folders created by users in your Organization.
Click Manage access to manage which users within your Organization can access the folder. A dialog appears with the Invite tab open by default.
Select the role you want the users to have, and then start typing their email address into the search bar. Select the user(s) you want to give access to the folder and click Add to confirm your selection.
To delete a user from a folder, navigate to the Manage tab and click the Delete button. Change a user’s access permissions by selecting a new role from the dropdown.
Users with Admin permissions cannot be deleted, and their role cannot be changed.

​

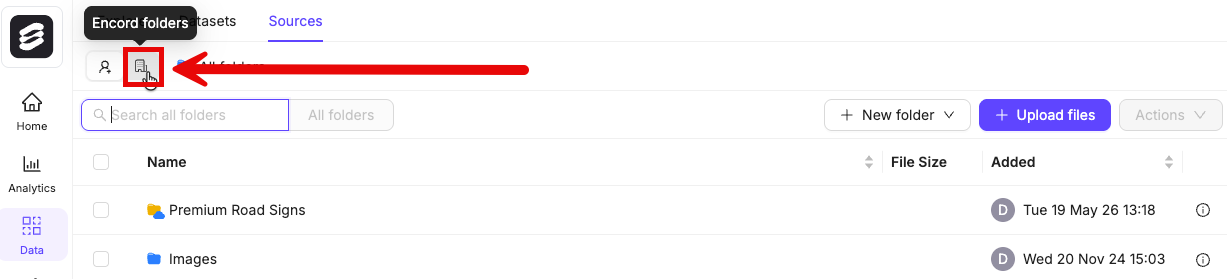

See All Files in Your Org

Organization admins can access all files stored in their Organization.
  1. Navigate to Files in the Encord platform.
  2. Click All Encord files.
